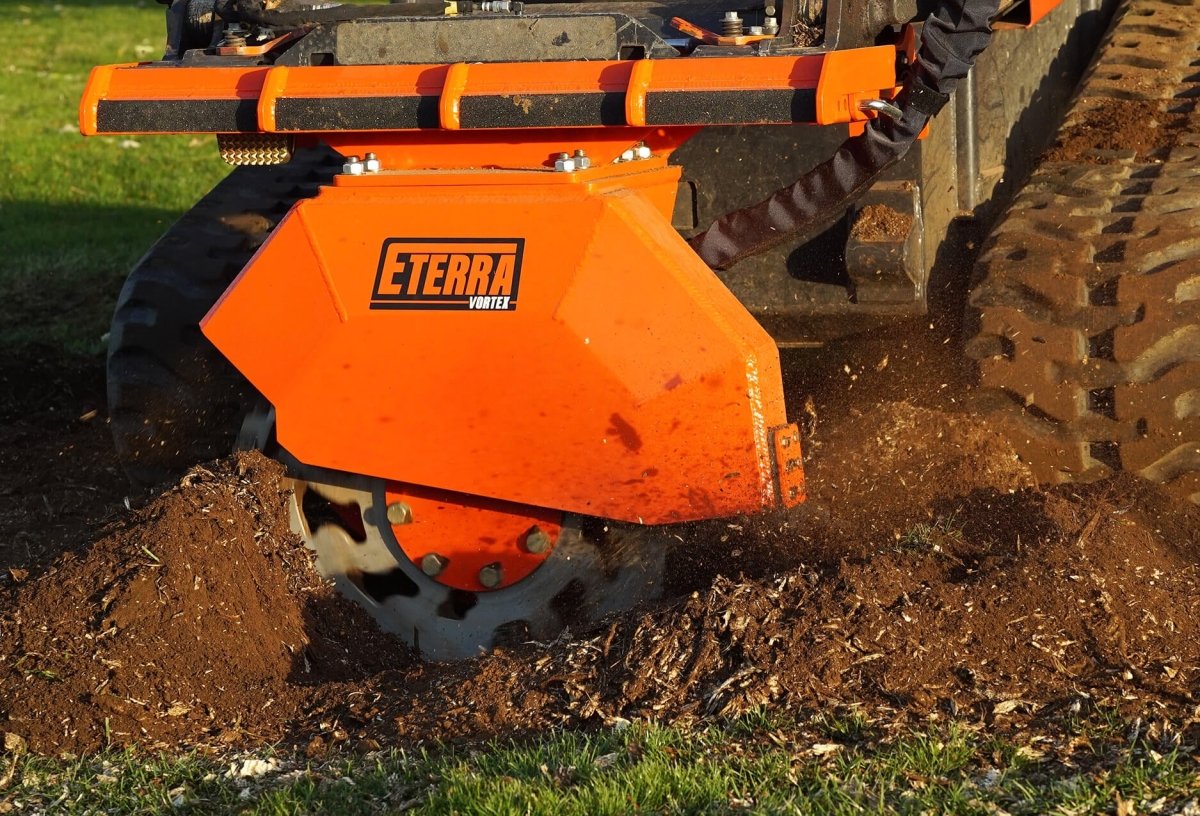

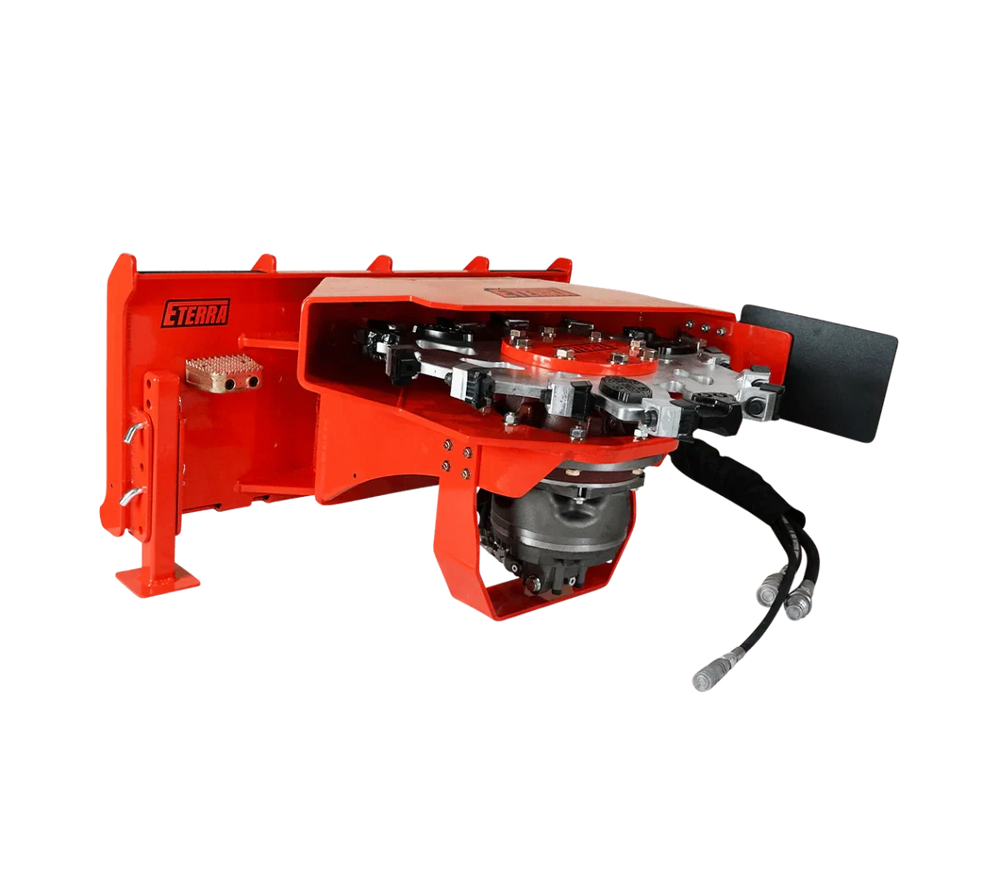

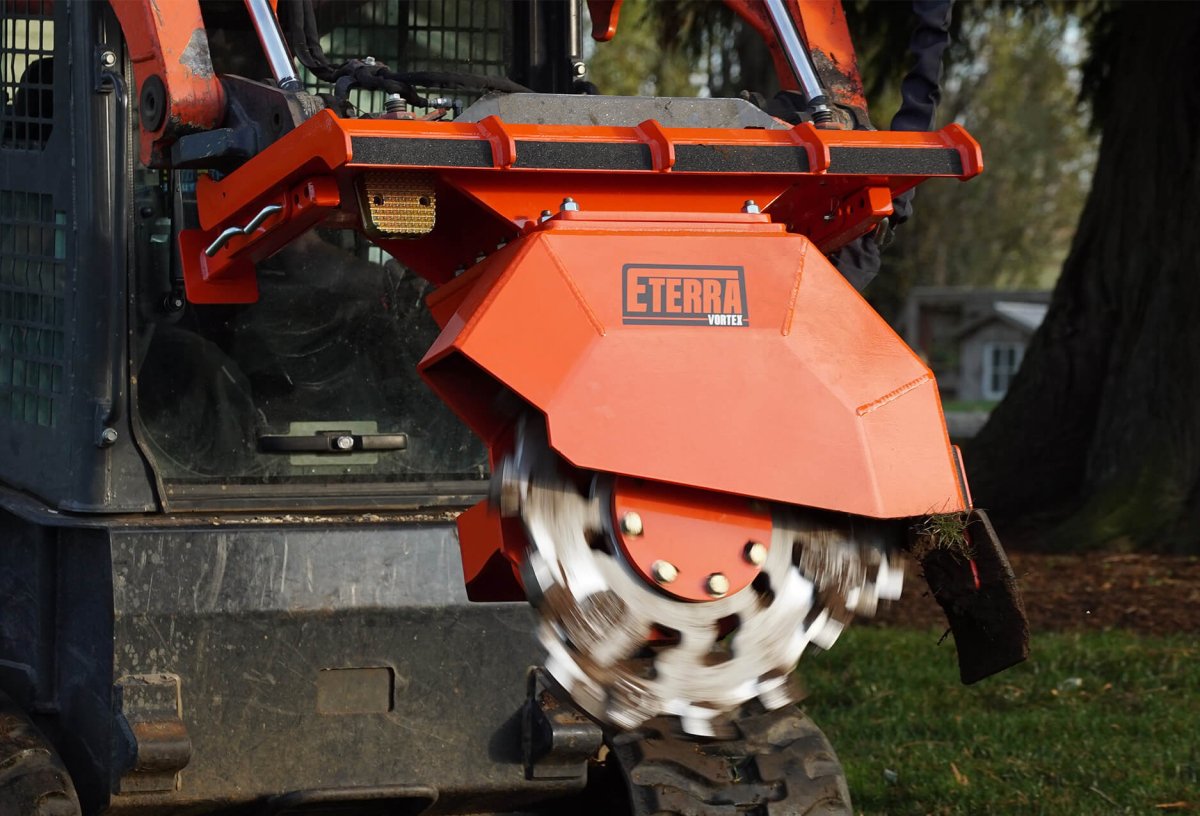

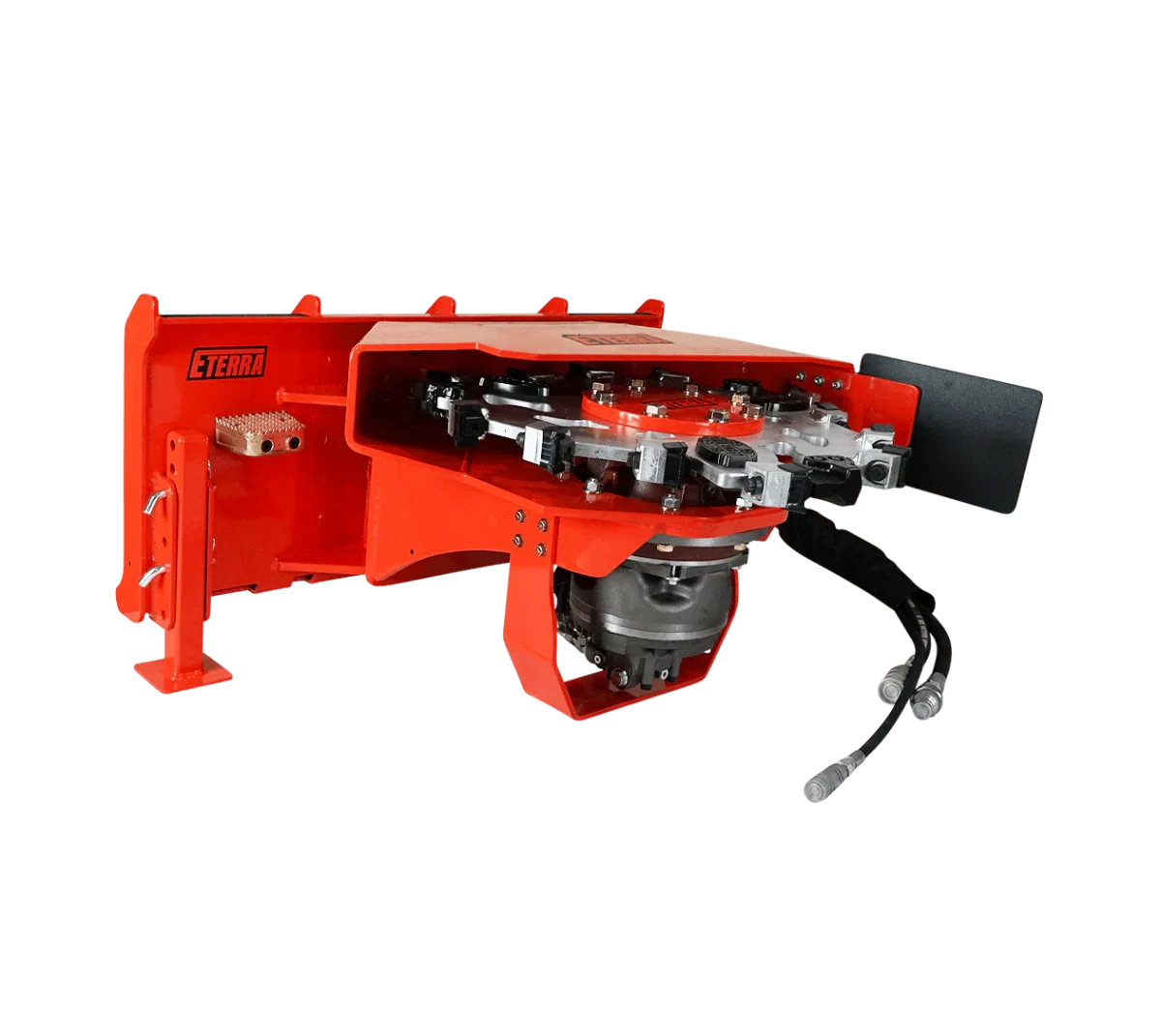

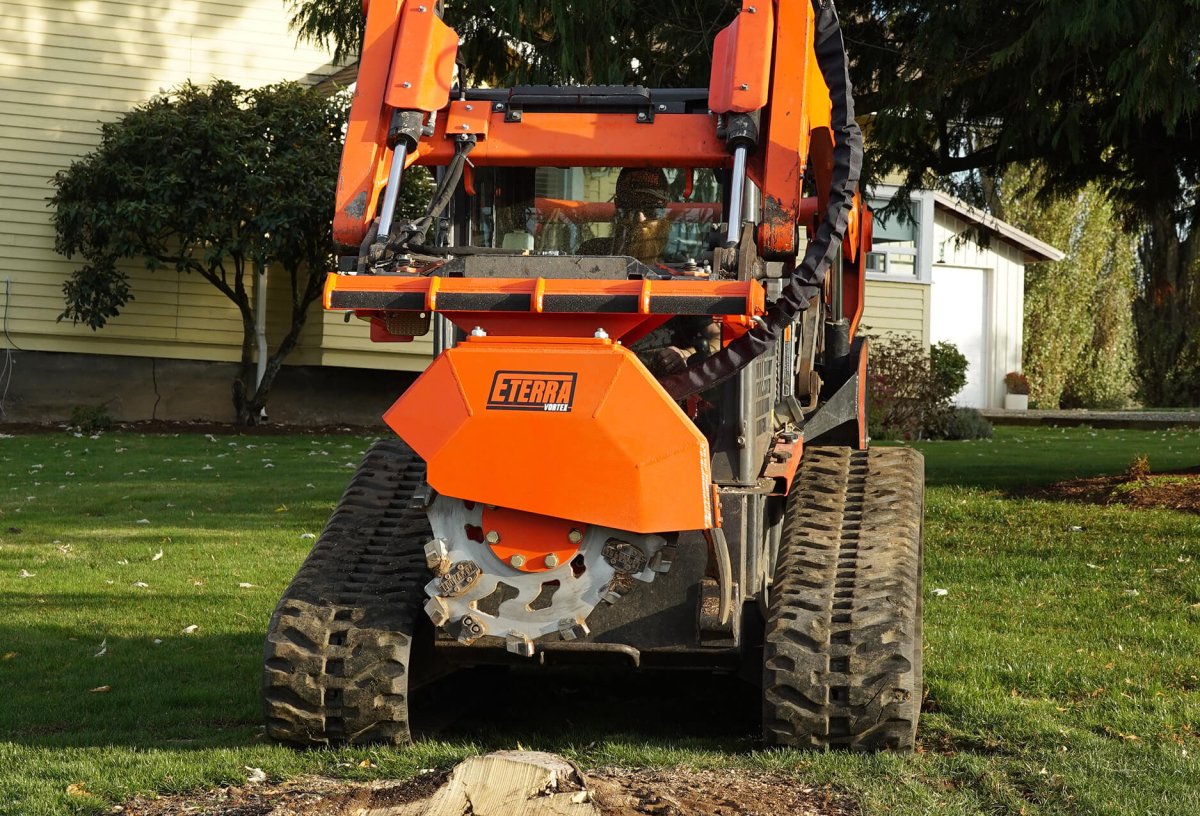

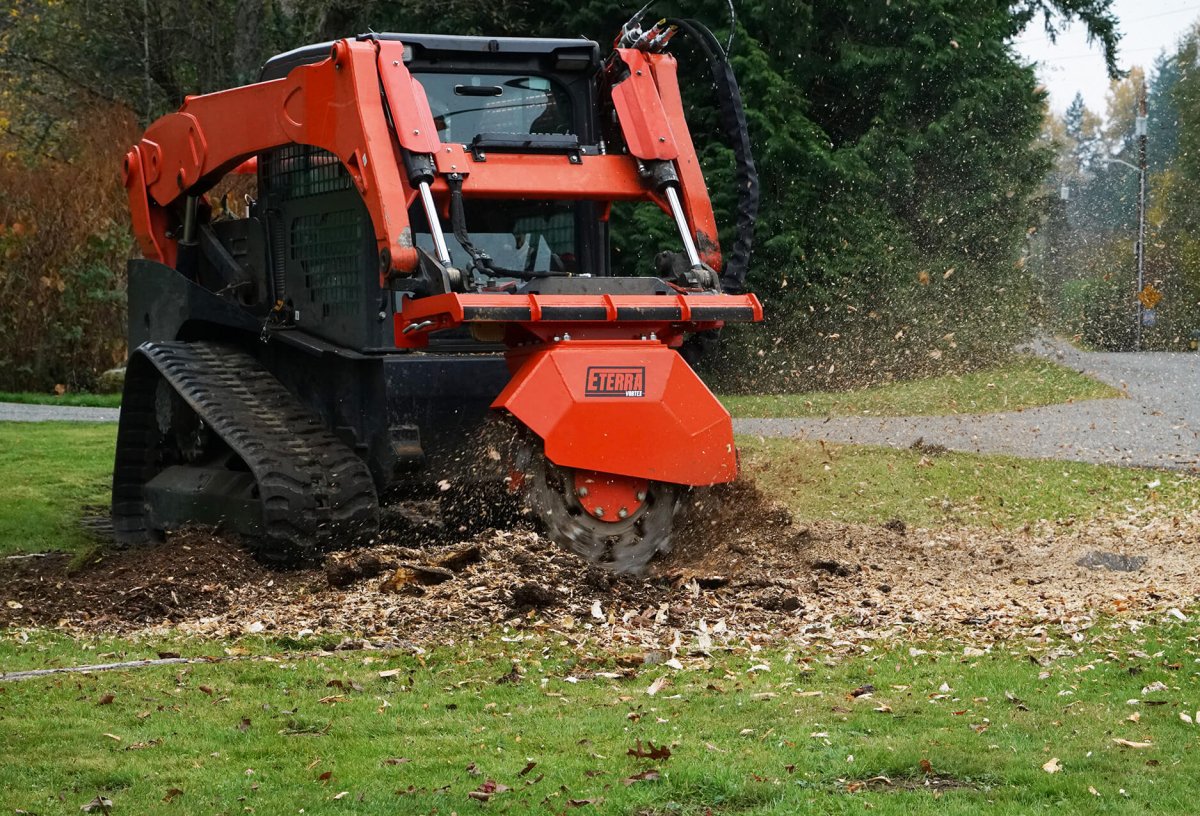

The Eterra Vortex stump grinder is built around a heavy cutting wheel that carries rotational energy through the cut instead of stalling in it. Three sizes cover three classes of machine — 20" for mini skid steers, 27" standard flow and 31" high flow for full-size skid steers and excavators. Available from Skid Steer Store.

Built for Efficiency and Capacity

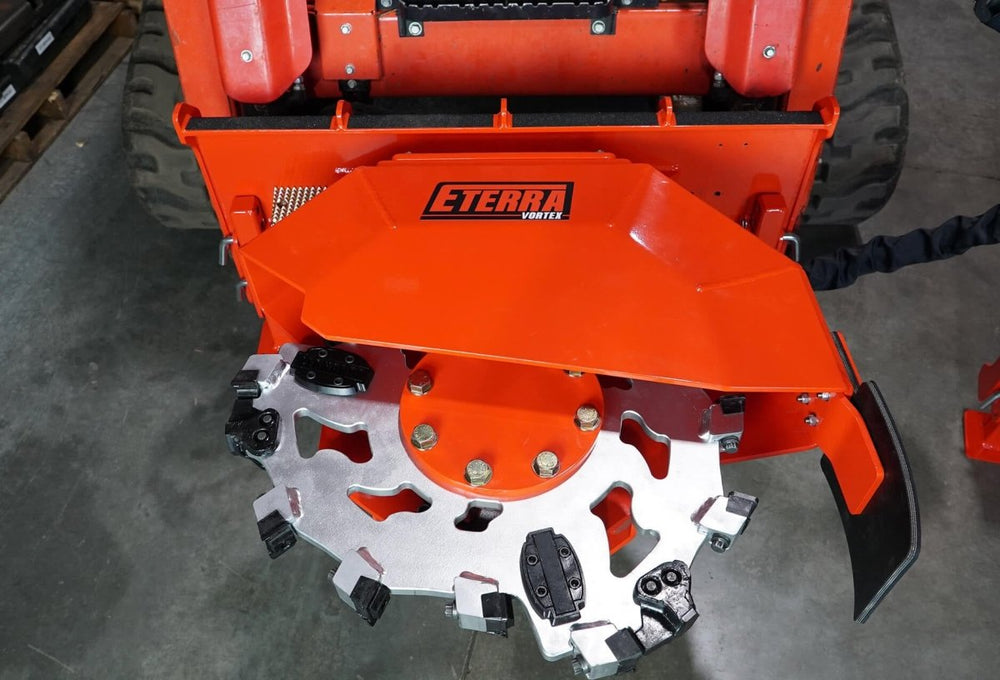

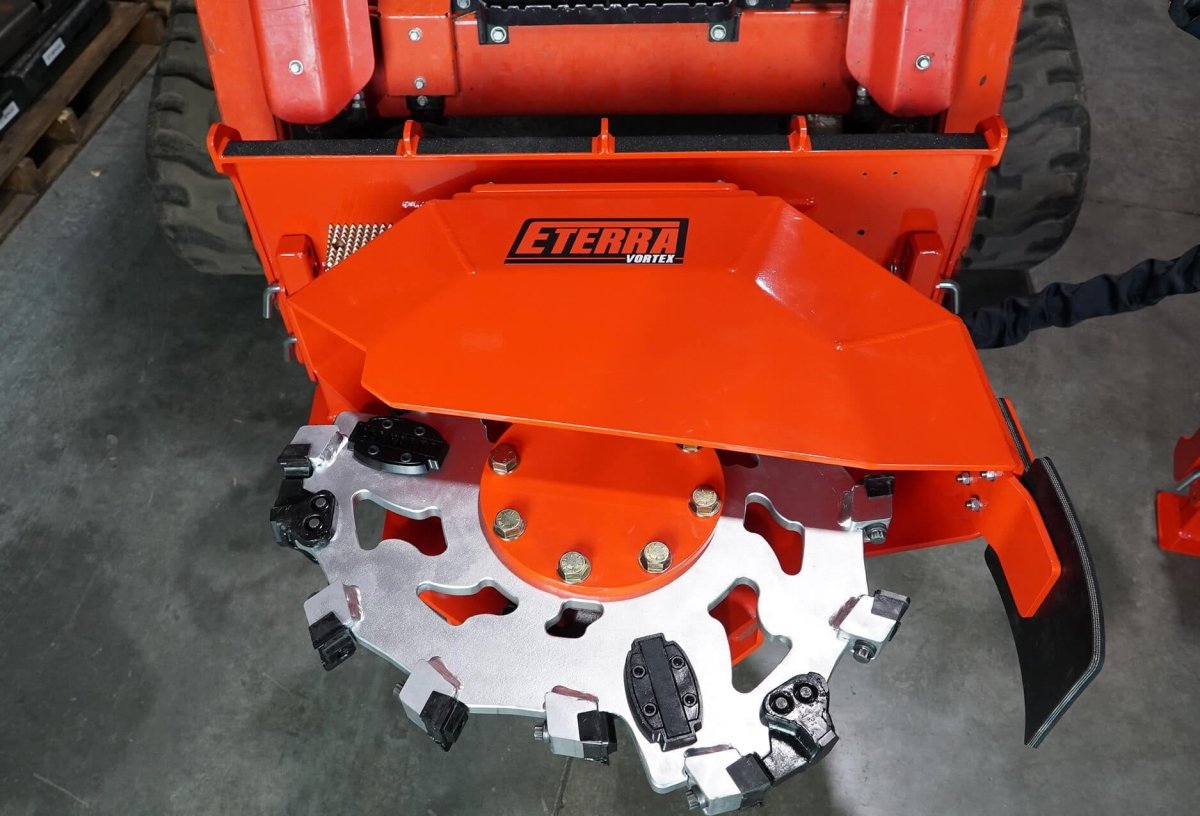

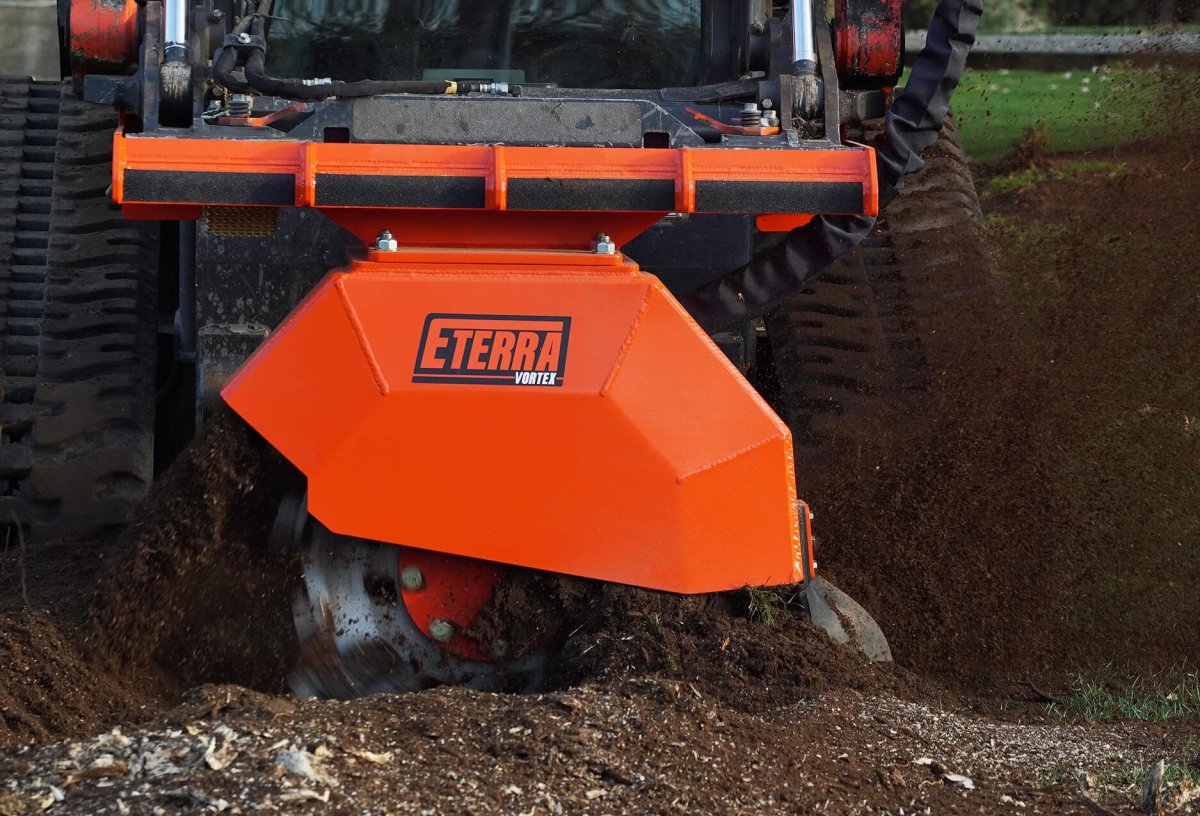

• Heavy cutting wheel — stored rotational energy keeps wheel speed up through hardwood, so you grind instead of bog down.
• Three sizes, three machine classes — 20" mini, 27" standard flow, 31" high flow.
• Wide 12–45 GPM coverage — a Vortex fits nearly any hydraulic package.

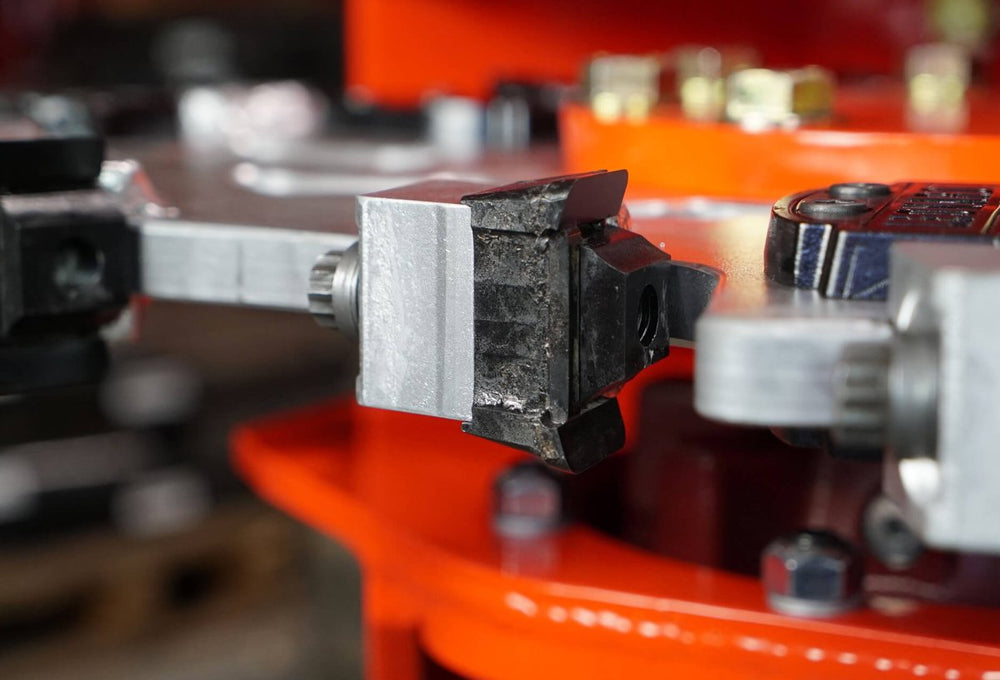

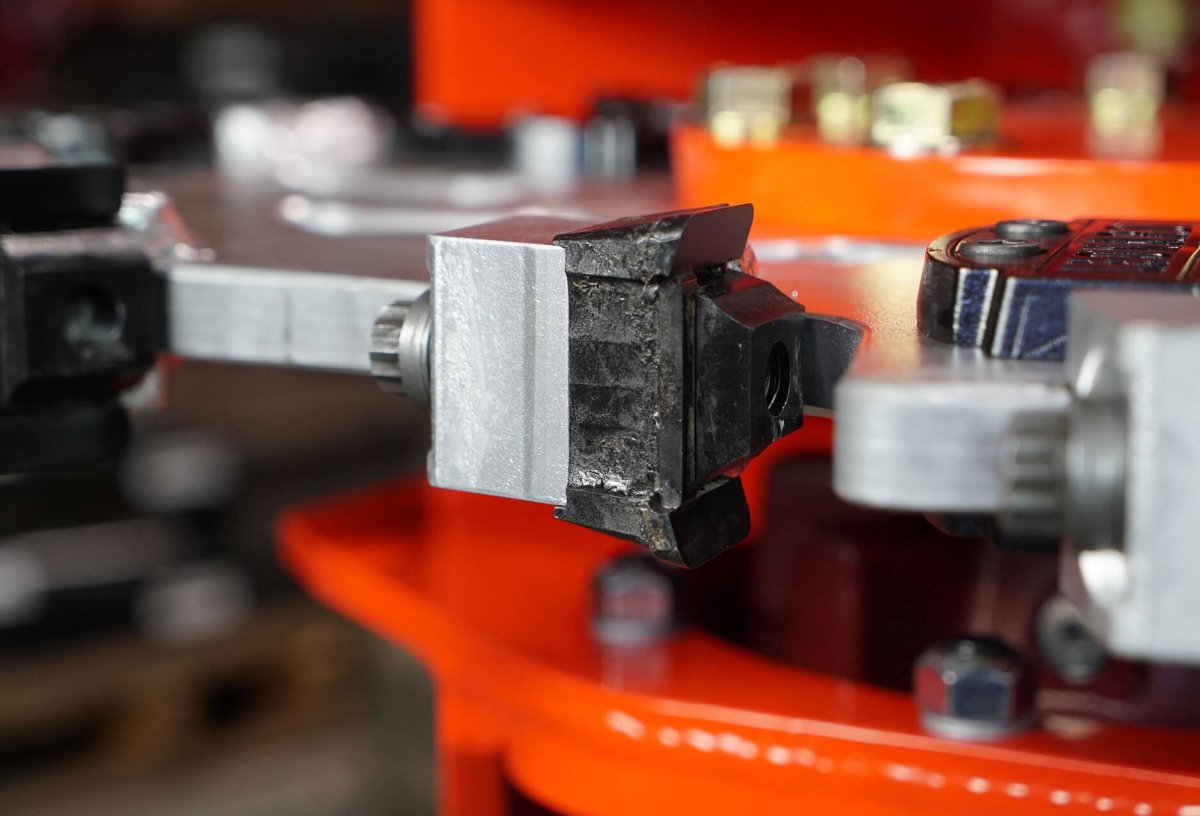

• Replaceable carbide teeth — swap teeth rather than replacing the wheel.
• Mini universal mount standard on 20" models, with Bobcat MT and ASV plates available.

Model Comparison

A Case Drain Is Required

Every Vortex model requires a case drain line. Running a high-torque hydraulic motor without one builds back-pressure on the shaft seal and will destroy the motor. Case drain and coupler specifications are matched to your machine at order time — contact Skid Steer Store with your make and model and we will confirm both before your order ships. If your machine has no case drain port, tell us before ordering.

Mini Skid Steer Mounting

Common Applications

Stump removal for landscaping and site prep, tree service cleanup, storm damage recovery, fence line and pasture clearing, lot preparation, and municipal park and right-of-way maintenance.

Frequently Asked Questions

Which Vortex fits my machine?
Mini skid steers take the 20" on 12–20 GPM. Standard-flow skid steers and excavators take the 27" on 18–30 GPM. High-flow machines take the 31" on 30–45 GPM.

Do I really need a case drain?
Yes, on every model without exception. Running without one builds back-pressure on the motor's shaft seal and causes failure.

Can I run the Vortex on an excavator?
Yes. Both the 27" standard flow and 31" high flow are available in excavator configurations.

How do I specify couplers and case drain fittings?
They are matched to your machine at order time rather than selected above. Contact Skid Steer Store with your make and model.

Do the mini models need a separate mounting plate?
Only if your machine is not mini universal. Bobcat MT and Mini ASV variants already include the correct plate in the listed price.

What is the difference between the 27" and 31"?
Wheel size and flow requirement. The 27" runs on standard-flow hydraulics; the 31" needs a high-flow machine but takes larger stumps in fewer passes.
