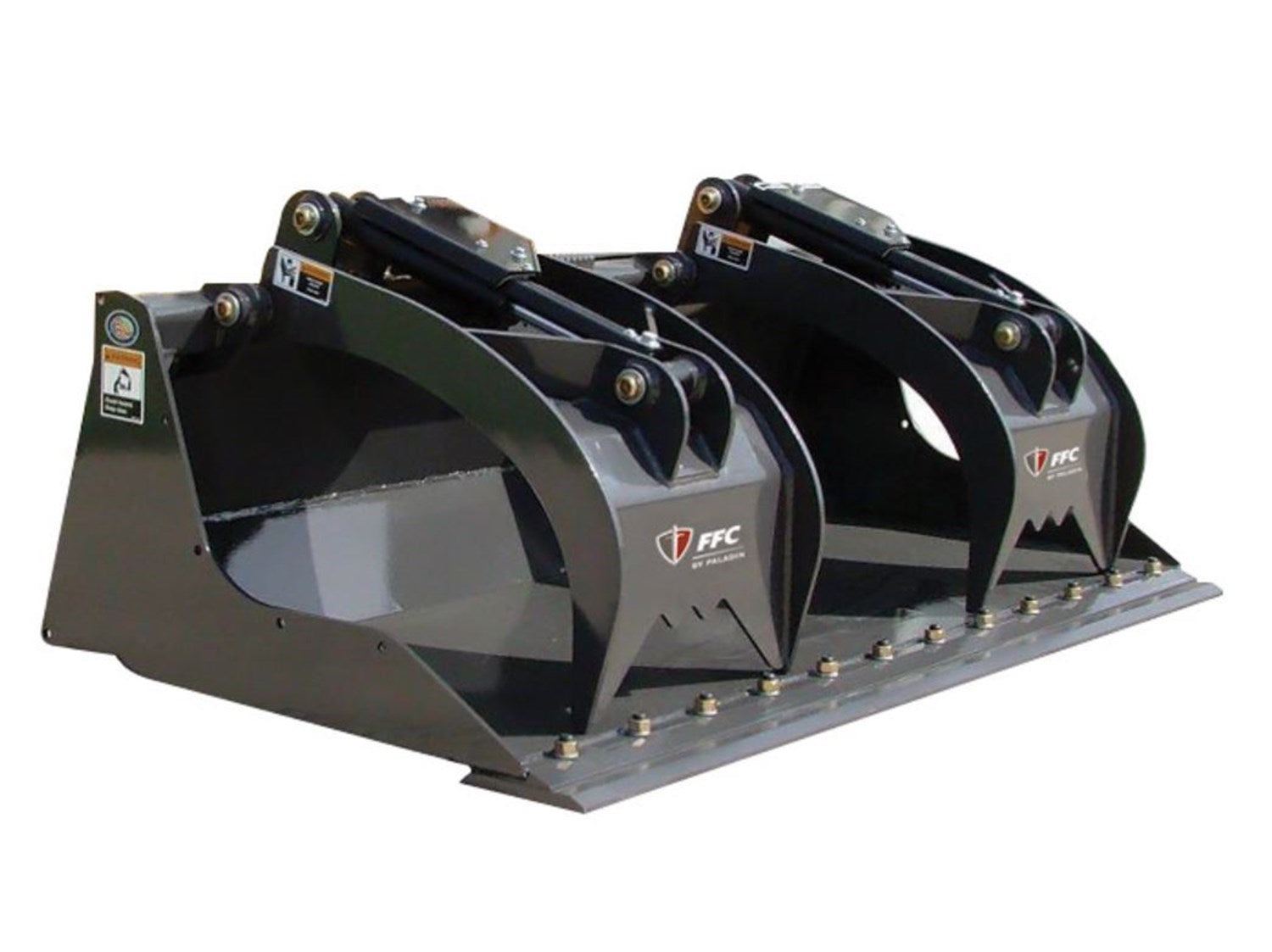

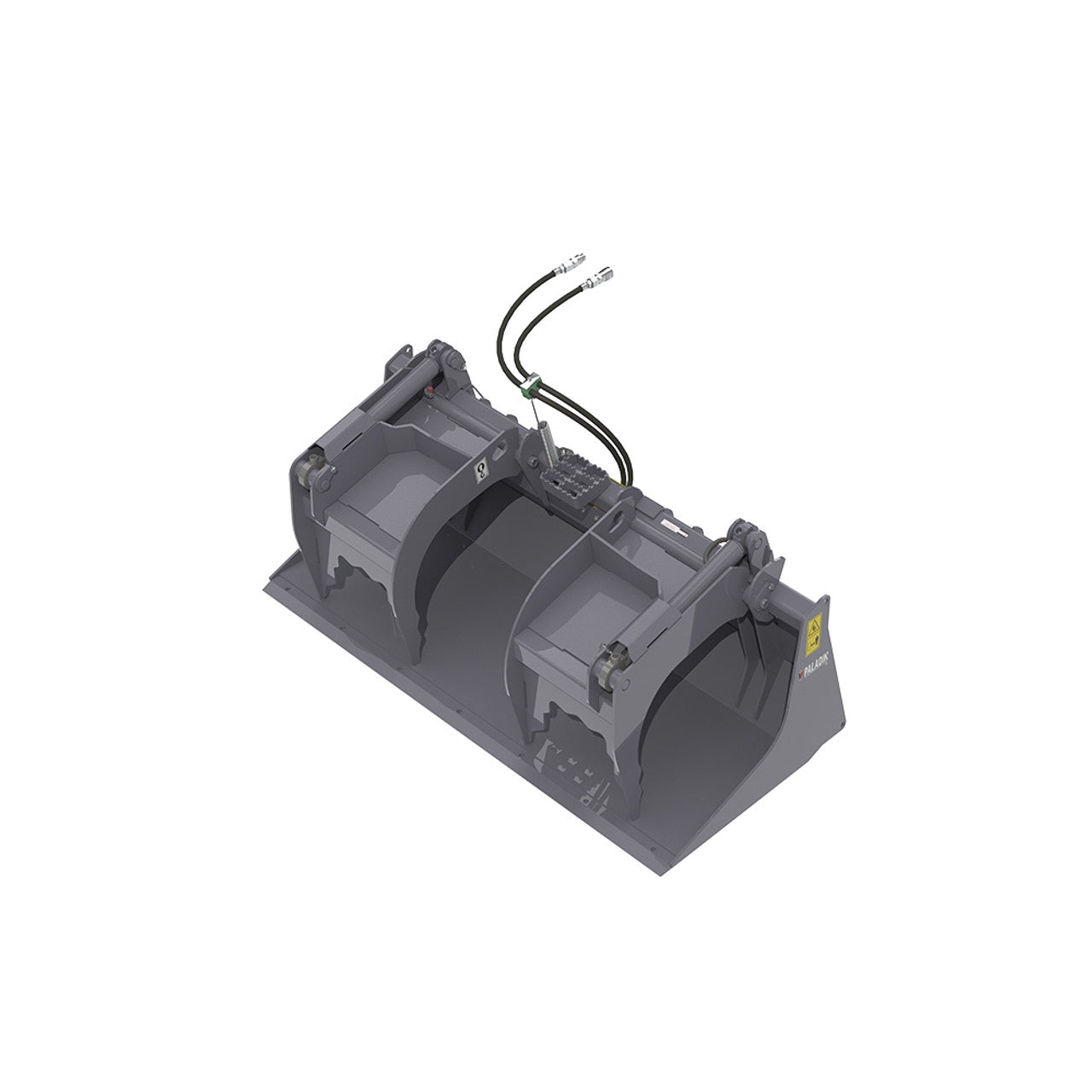

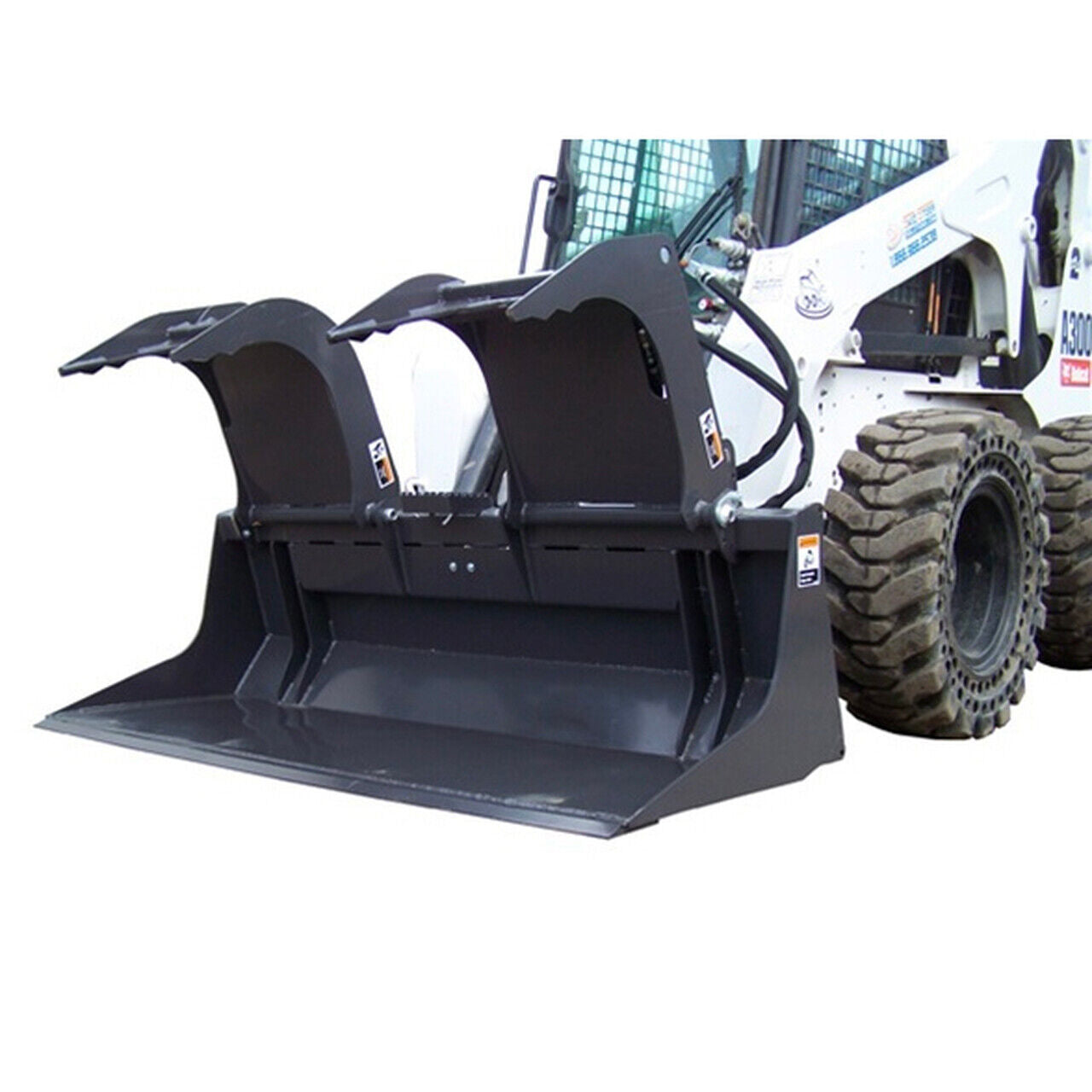

Paladin / FFC Scrap Grapple Buckets for Skid Steer
SCRAP GRAPPLE BUCKETS The FFC Commercial Scrap Grapple and Utility Grade Scrap Grapples are ideal for recycling,...
- $6,706.80
- $6,706.80
- Unit price
- per
Subtotal:
$6,706.80
Couldn't load pickup availability
Description
xSCRAP GRAPPLE BUCKETS
The FFC Commercial Scrap Grapple and Utility Grade Scrap Grapples are ideal for recycling, construction clean up, heavy duty material handling, rock work, landscaping, demolition clean up, and farm work.
SD & HD FEATURES
- Standard cylinder guards protect all cylinder components
- Standard load check valve
- 1.25" cylinder pivot pins
- 1.25" x 24" patented grapple pins reduce torsional force
- Patented cushioned cylinders are 2" x 8" x 1.25" on full feature
- Bucket edge drilled for FFC® replaceable edge unless specified
- Optional .75" x 8" double bevelled edge
XD FEATURES
- Optional cylinder guards protect all cylinder components
- 1.5" x 8.625" heat-treated, greasable pivot pins on full feature
- 1.5" x 27.125" patented grapple pins reduce torsional force
- 375" end plates
- Patented cushioned & sleeved cylinders are 2.5" x 8" x 1.75" on full feature
- Bucket edge drilled for FFC® replaceable edge unless specified
- Optional .75" x 8" double bevelled edge
SPECIFICATIONS
| Duty class | Width (in) | Lbs | Height open (in) | Height closed (in) | Depth (in) | Holes | Hole spacing (in) |
| Standard | 60" | 775 | 34" | 20" | 36" | 7 | 9" |
| Standard | 66" | 800 | 34" | 20" | 36" | 7 | 10" |
| Standard | 72" | 870 | 34" | 20" | 36" | 7 | 11" |
| Heavy | 76" | 1081 | 40" | 20" | 38" | 8 | 10" |
| Heavy | 82" | 1133 | 40" | 20" | 38" | 9 | 10" |
| Extreme | 72" | 1303 | 45.5" | 19" | 38" | 7 | 11" |
| Extreme | 78" | 1514 | 45.5" | 19" | 38" | 9 | 9" |
| Extreme | 82" | 1542 | 45.5" | 19" | 38" | 9 | 10" |
Check fitment & delivery details before ordering
Attachments may differ in coupler, hydraulic-flow requirement, size, weight and compatible machine models. Review the listing specifications and contact us if you need clarification. Also check applicable shipping, returns and warranty terms before checkout. Shipping · Warranty
