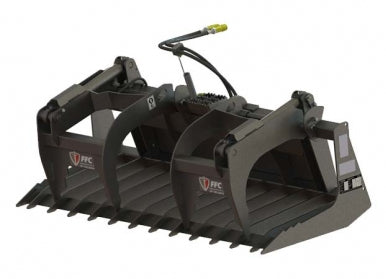

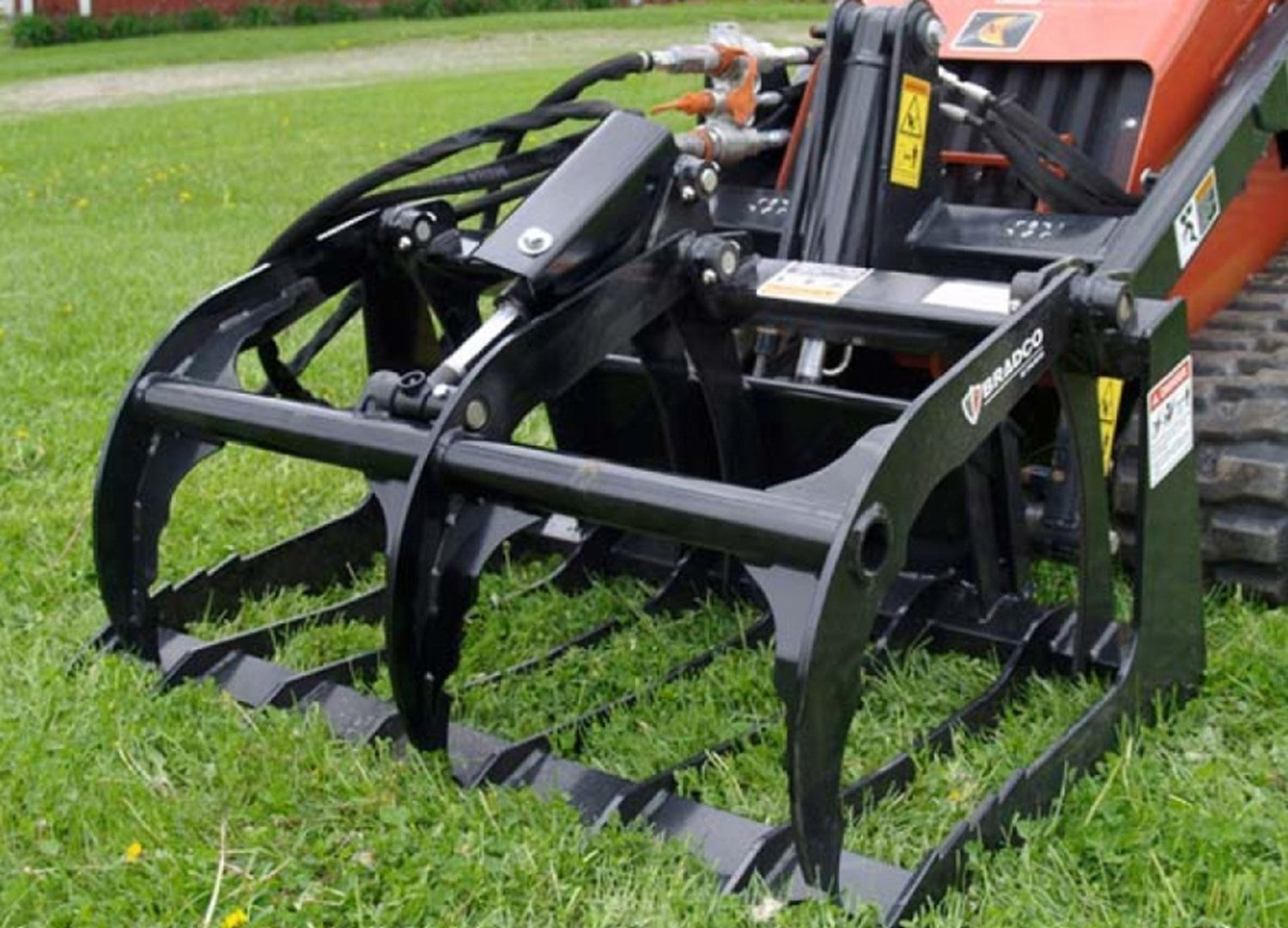

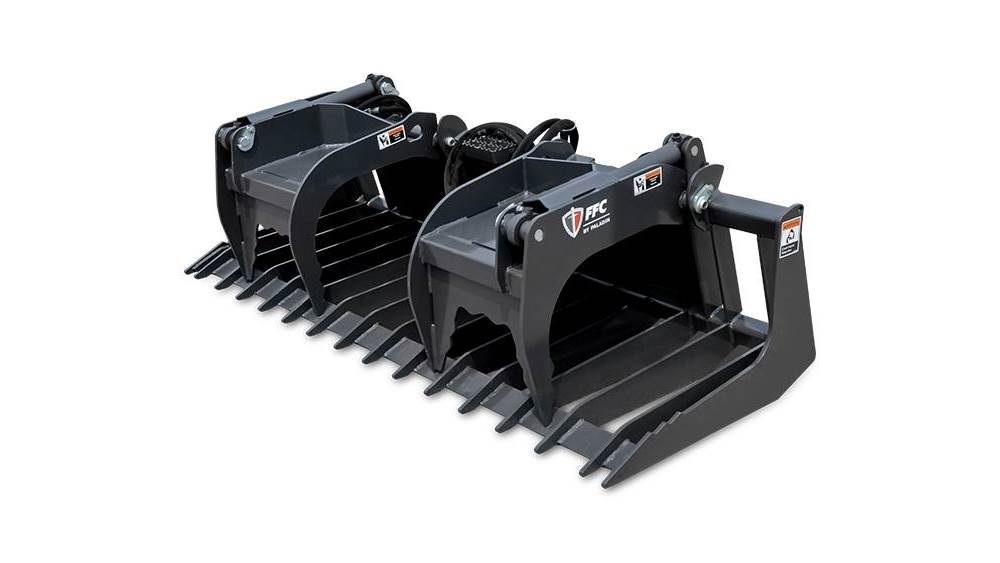

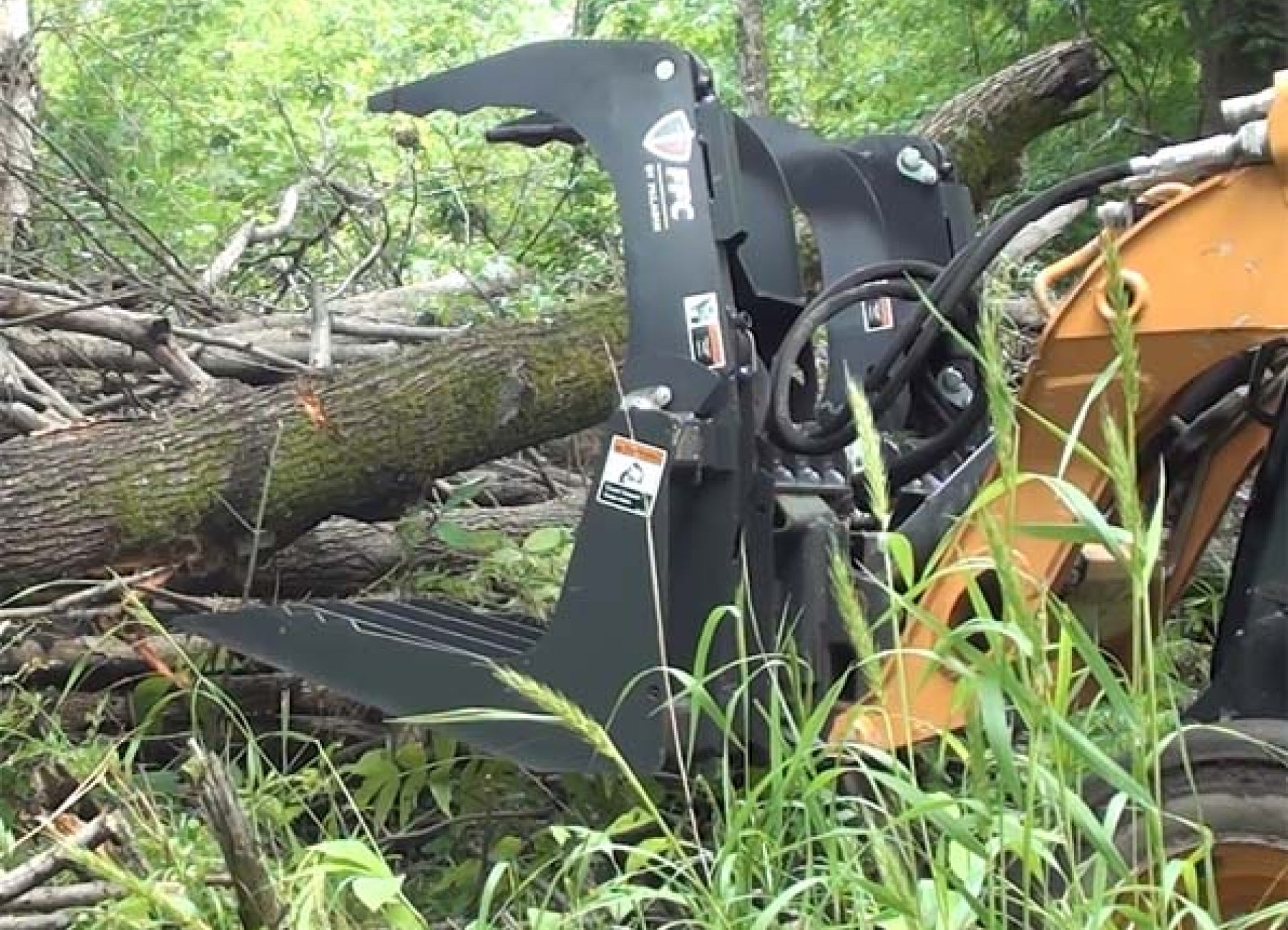

Paladin / FFC Brush Grapples for Skid Steer
UTILITY BRUSH GRAPPLE FFC Brush Grapples are fabricated with high-strength steel and replaceable hardened steel bushings that...
- $2,935.00
- $2,935.00
- Unit price
- per
Subtotal:
$2,935.00
Couldn't load pickup availability
Description
xUTILITY BRUSH GRAPPLE
FFC Brush Grapples are fabricated with high-strength steel and replaceable hardened steel bushings that ensure durability and long operational life. A pilot-operated check valve allows independent movement of the grapple arms, facilitating stabilization of irregular loads that are common in this type of application.
FEATURES
- 6" tine spacing
- Standard cylinder guards protect all cylinder components
- 1.25" cylinder pivot pins
- 1.25" x 24" patented grapple pins greatly reduce torsional force
- .375" end plates on Tractor Duty and .5" end plates on Standard and Extreme Duty
- Patented cushioned and sleeved cylinders are 2" x 8" x 1.25"
- Standard load check valve
- 100,000 PSI yield strength tine material
SPECIFICATIONS
| Duty class | Width (in) | Cylinders | Tine spacing (in) | Lbs | Height open (in) | Height closed (in) | Depth (in) |
| Tractor | 48" | 1 | 6" | 300 | 29" | 25.5" | 30.5" |
| Tractor | 54" | 1 | 6" | 315 | 29" | 25.5" | 30.5" |
| Tractor | 72" | 2 | 6" | 435 | 29" | 25.5" | 30.5" |
| Standard | 60" | 2 | 6" | 723 | 33" | 17.5" | 36" |
| Standard | 66" | 2 | 6" | 740 | 33" | 17.5" | 36" |
| Standard | 72" | 2 | 6" | 775 | 33" | 17.5" | 36" |
| Heavy | 72" | 2 | 6" | 925 | 40" | 16.5 | 39" |
| Heavy | 78" | 2 | 6" | 999 | 40" | 16.5" | 39" |
| Heavy | 84" | 2 | 6" | 1054 | 40" | 16.5" | 39" |
Check fitment & delivery details before ordering
Attachments may differ in coupler, hydraulic-flow requirement, size, weight and compatible machine models. Review the listing specifications and contact us if you need clarification. Also check applicable shipping, returns and warranty terms before checkout.
