Digga MM-10K Helical Pier Drive Head for Mini Skid Steers

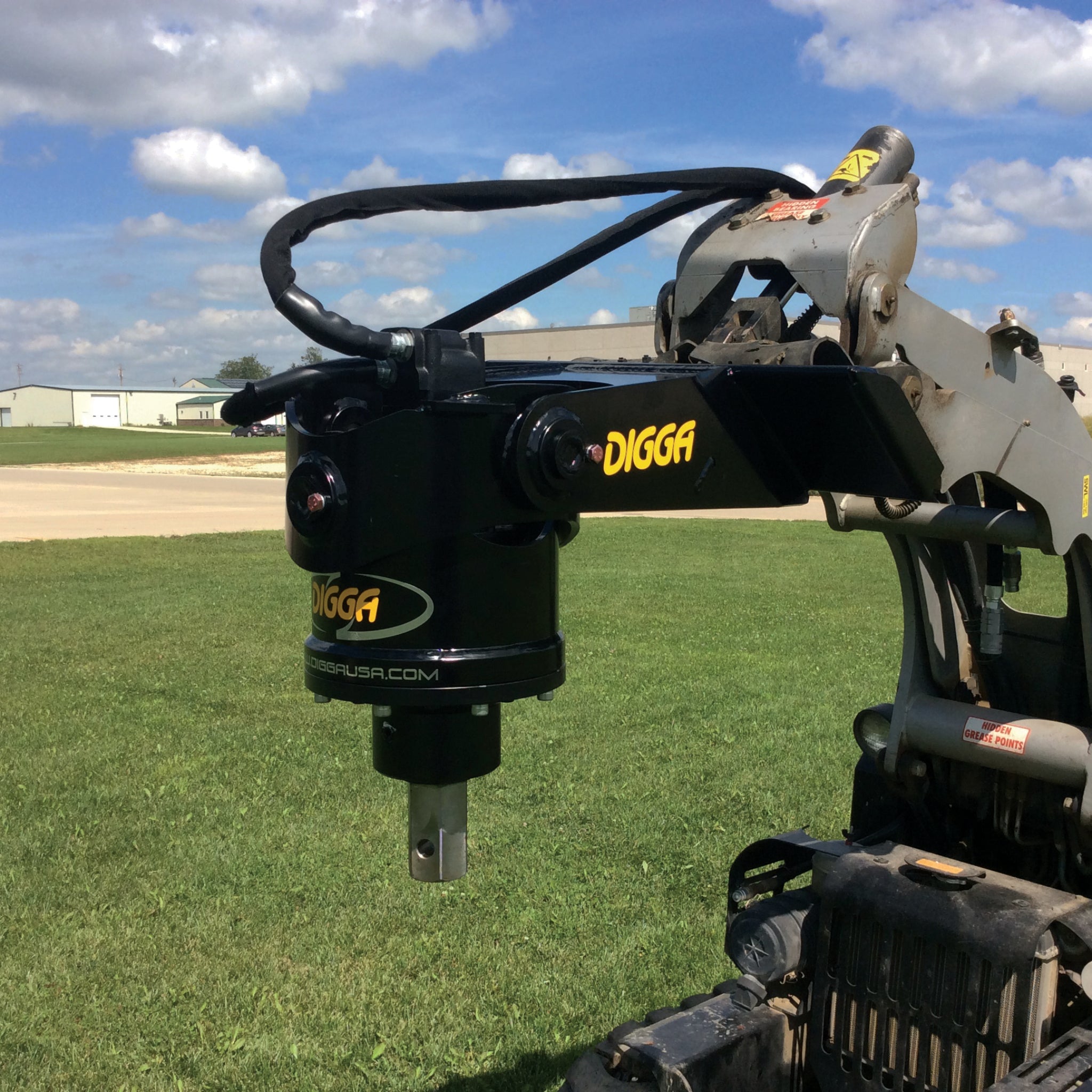

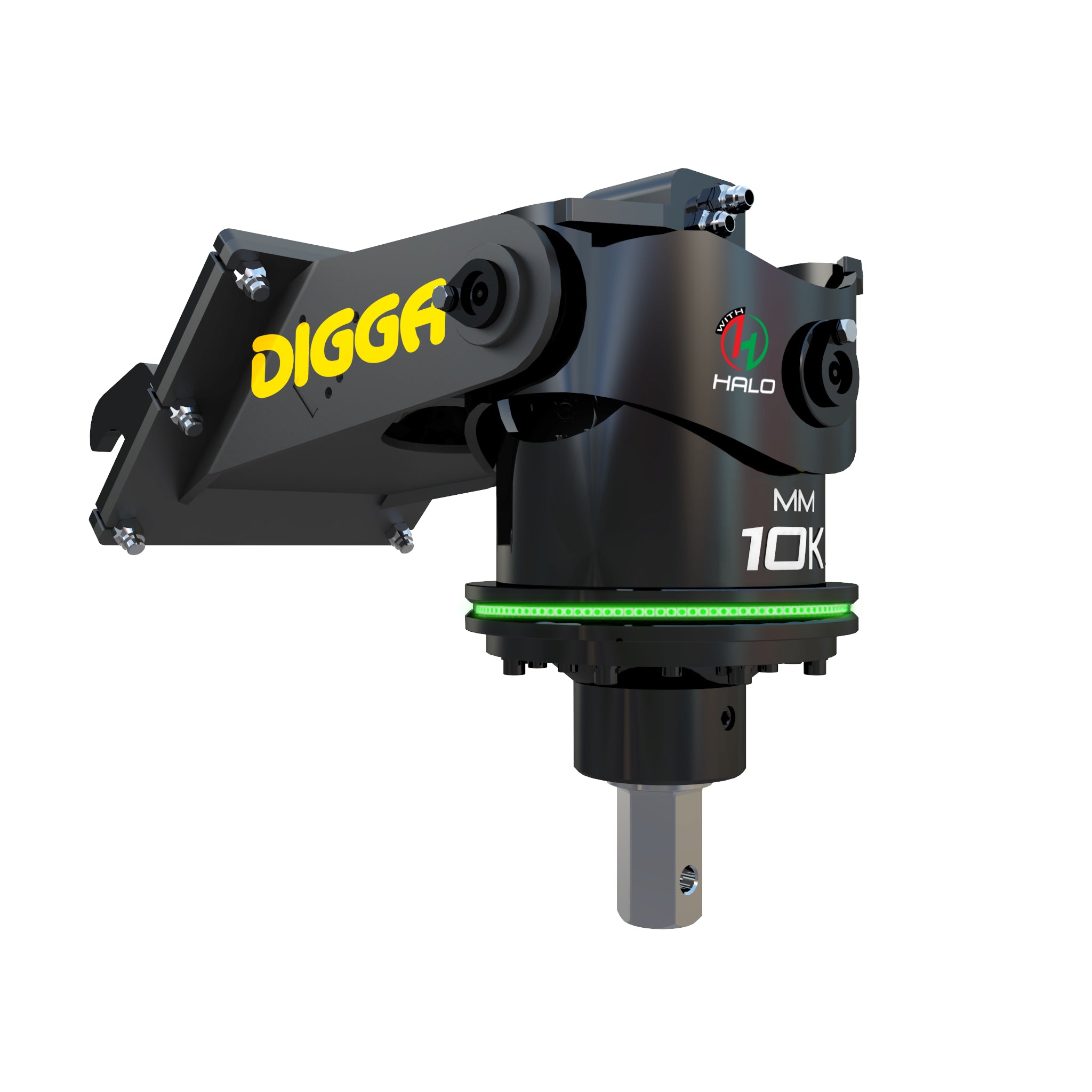

The Digga MM-10K Helical Pier Drive Head turns a compatible mini skid steer into a compact helical pile installation machine. It delivers up to 10,000 ft-lbs of torque for installing helical piers, screw piles, earth anchors, and ground anchors.

Designed for mini skid steers producing 10 to 20 GPM, the MM-10K combines high torque with compact-machine access. It is well suited to residential foundations, underpinning, decks, solar foundations, and other projects where larger equipment cannot operate efficiently.

A high-efficiency Danfoss/Digga geroler hydraulic motor provides dependable power transfer under demanding installation loads. Multiple mounting packages and optional installation tools allow contractors to configure the drive around their carrier and project requirements.

Features and Specifications

• Delivers up to 10,000 ft-lbs of torque

• Designed for mini skid steer helical pile installation

• High-efficiency Danfoss/Digga geroler hydraulic motor

• Compatible with 10 to 20 GPM hydraulic flow

• Supports hydraulic pressure up to 3,000 PSI

• Recommended for machines with 20 to 45 HP

• Suitable for 1,000 to 2,000 lb rated operating capacities

• Mini Universal and Bobcat MT mounting packages available

• Optional 50-inch TPE extension mount packages

• Optional Torque Monitoring System

• Optional HALO Auger Alignment System

• One-year gearbox and motor warranty

Built for Compact Helical Pile Installation

The MM-10K gives contractors professional installation torque without requiring a full-size skid steer or excavator. Its compact setup helps crews reach backyards, existing foundations, narrow access points, and developed properties.

Using a mini skid steer can also reduce disruption around finished landscaping and structures. Contractors can position the carrier closer to restricted work areas while retaining the power needed for demanding pile installations.

Common applications include:

• Helical pier and screw pile installation

• Foundation underpinning

• Deck and boardwalk foundations

• Earth and ground anchor installation

• Solar foundation anchoring

• Residential foundation support

• Restricted-access piling work

Actual suitability depends on soil conditions, pile specifications, carrier capacity, and required installation torque.

Efficient Hydraulic Performance

The Danfoss/Digga geroler motor efficiently converts hydraulic power into rotational torque. This helps the drive maintain dependable performance as soil resistance increases during installation.

Correct hydraulic matching is essential. The carrier should provide between 10 and 20 GPM without exceeding 3,000 PSI. Buyers should confirm auxiliary flow, pressure, coupler type, and lifting capacity before ordering.

Multiple Mounting Options

The MM-10K is available with Mini Universal and Bobcat MT mounting packages. The correct option depends on the carrier model and attachment interface.

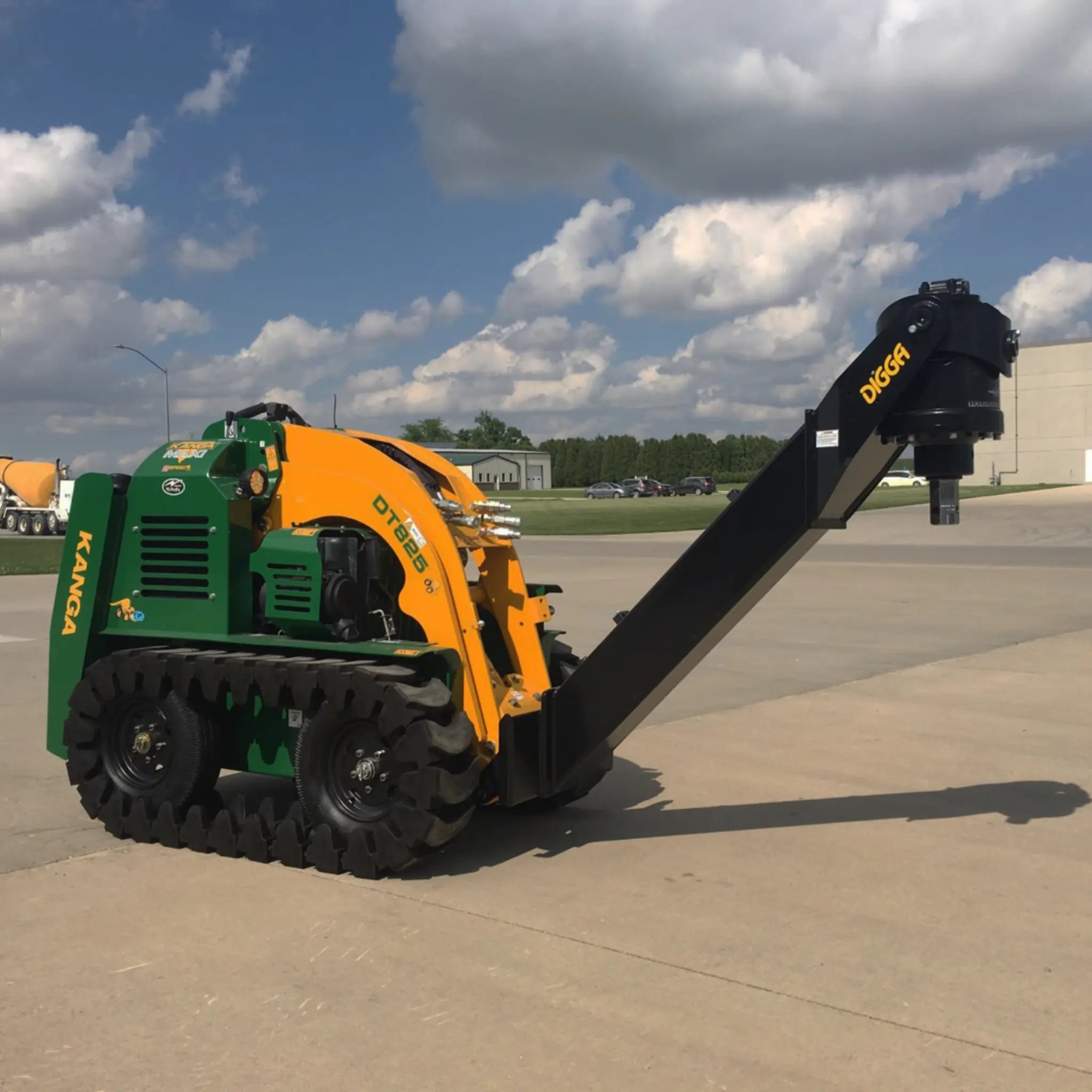

An optional 50-inch TPE extension mount provides additional reach and clearance. This can help operators position piles near excavations, foundations, and other obstacles.

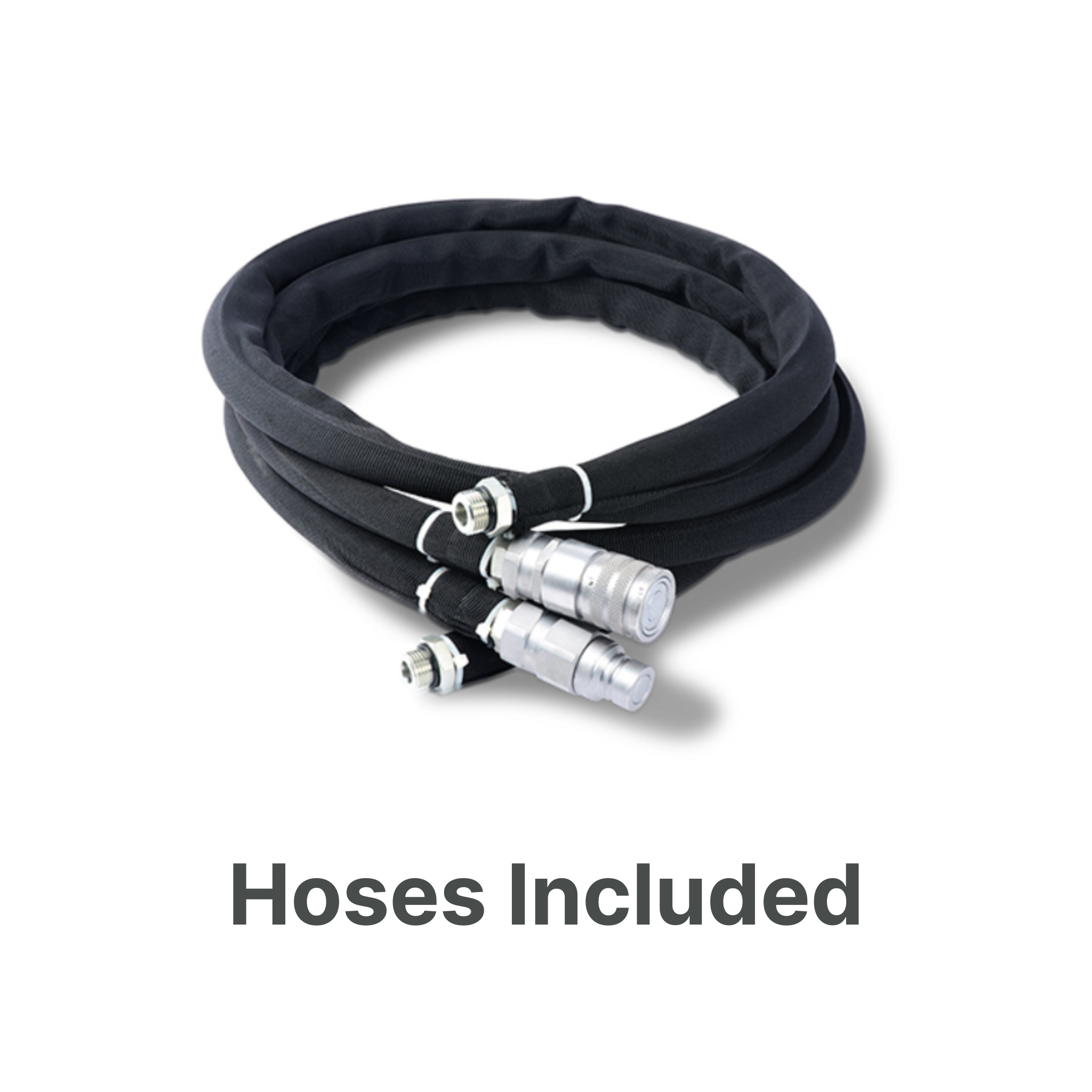

Package contents may vary. Confirm whether the selected configuration includes the required mount, hoses, couplers, adapters, and installation accessories.

Optional Installation Technology

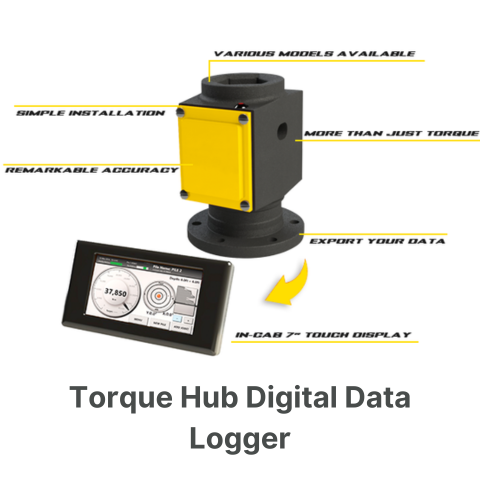

The optional Torque Monitoring System allows contractors to monitor installation torque. This information can support engineering verification, installation records, and project quality control.

The optional HALO Auger Alignment System helps operators maintain the required installation angle. Better alignment can reduce corrections and improve pile placement throughout the job.

Check Compatibility Before Ordering

The Digga MM-10K is intended for mini skid steers that meet these general requirements:

• Hydraulic flow: 10 to 20 GPM

• Maximum pressure: 3,000 PSI

• Machine power: 20 to 45 HP

• Rated operating capacity: 1,000 to 2,000 lbs

• Mount: Mini Universal or Bobcat MT

Do not select a helical pile driver based on horsepower alone. Hydraulic output, operating capacity, mounting interface, and machine stability all affect compatibility.

Before ordering, confirm your machine model, hydraulic specifications, required torque, pile type, and preferred mounting package.

Frequently Asked Questions

How much torque does the Digga MM-10K produce?

The MM-10K delivers up to 10,000 ft-lbs of torque for installing compatible helical piles, screw piles, and anchors.

Which machines can use the MM-10K?

It is designed for mini skid steers producing 10 to 20 GPM at pressures up to 3,000 PSI. Recommended machine power is 20 to 45 HP.

What mounting packages are available?

Available options include Mini Universal, Bobcat MT, and optional 50-inch TPE extension mount packages.

Can installation torque be monitored?

Yes. An optional Torque Monitoring System is available for applications requiring torque verification or installation documentation.

Does the MM-10K include a warranty?

Yes. It includes a one-year gearbox and motor warranty from the manufacturer.

Select the Right MM-10K Package

The Digga MM-10K provides the torque, compact access, and configuration options needed for professional helical pile installation.

Contact Skid Steer Store with your machine model, hydraulic flow, pressure, and required installation torque. Our team can help you select the correct drive package.
