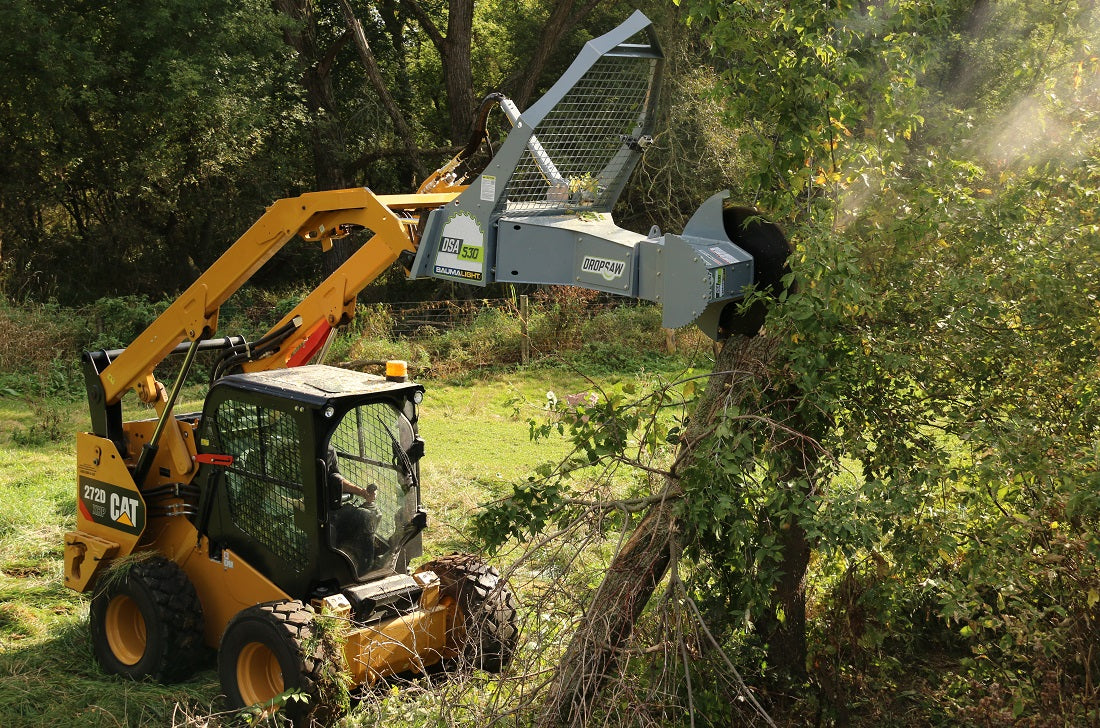

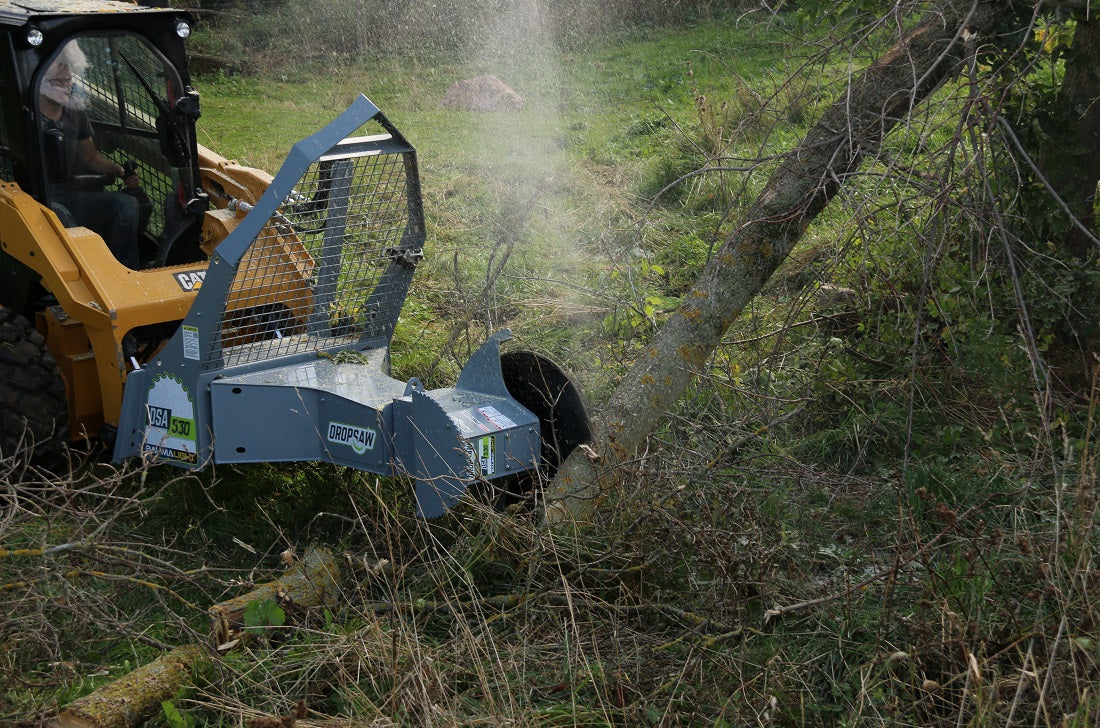

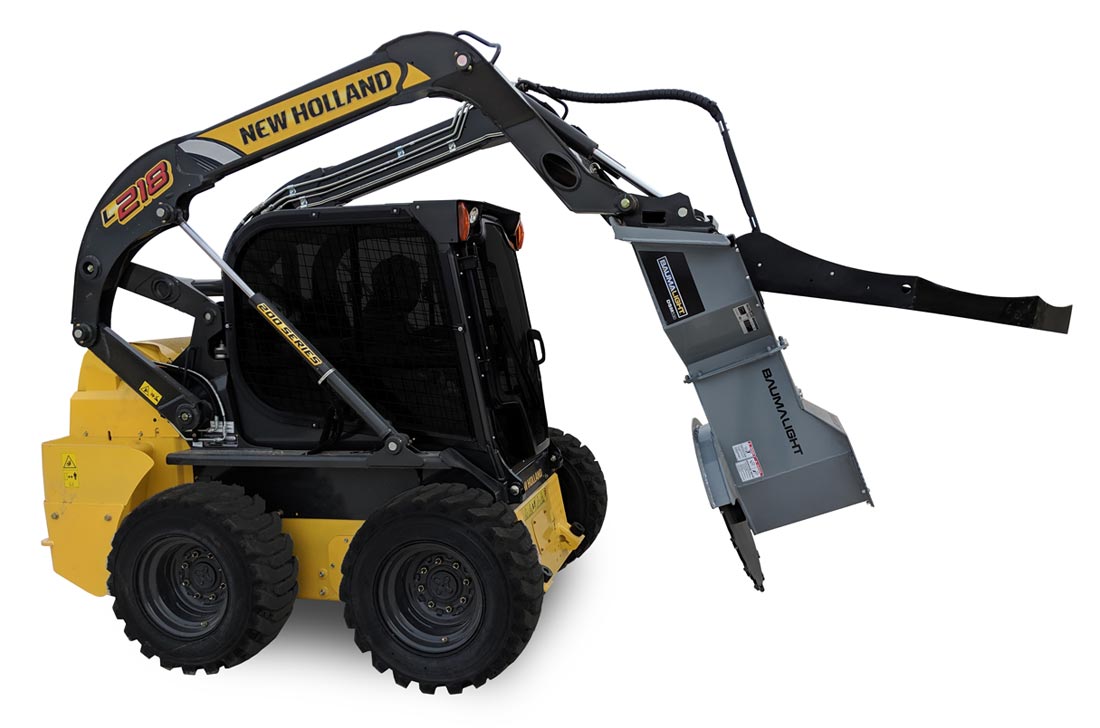

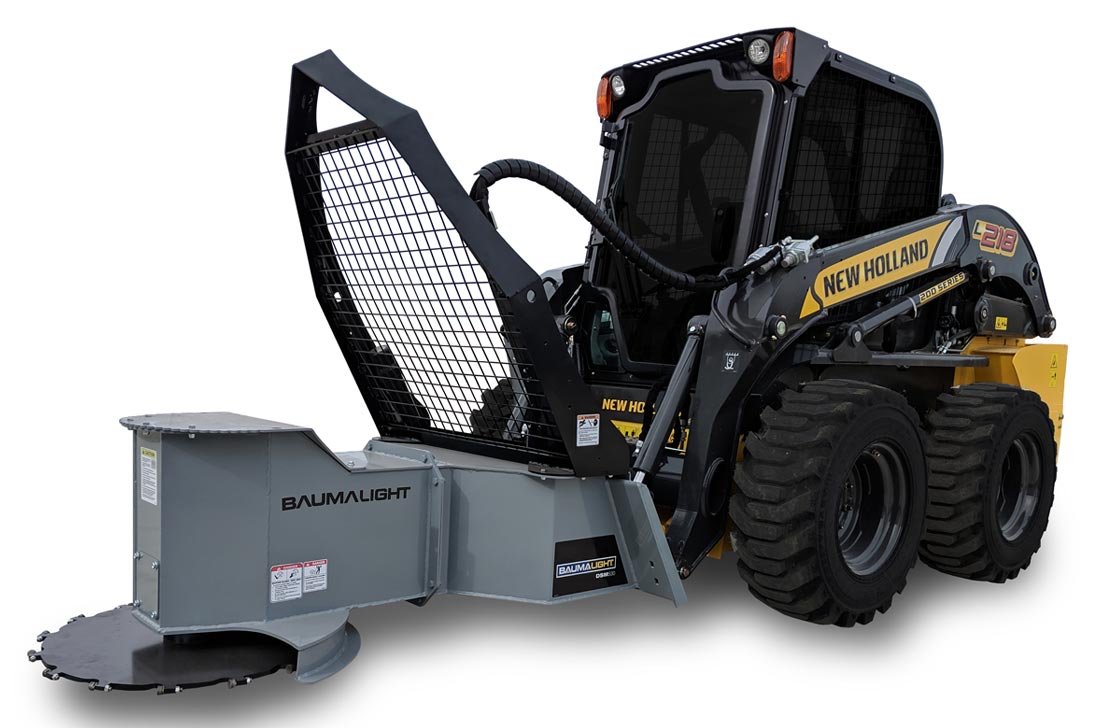

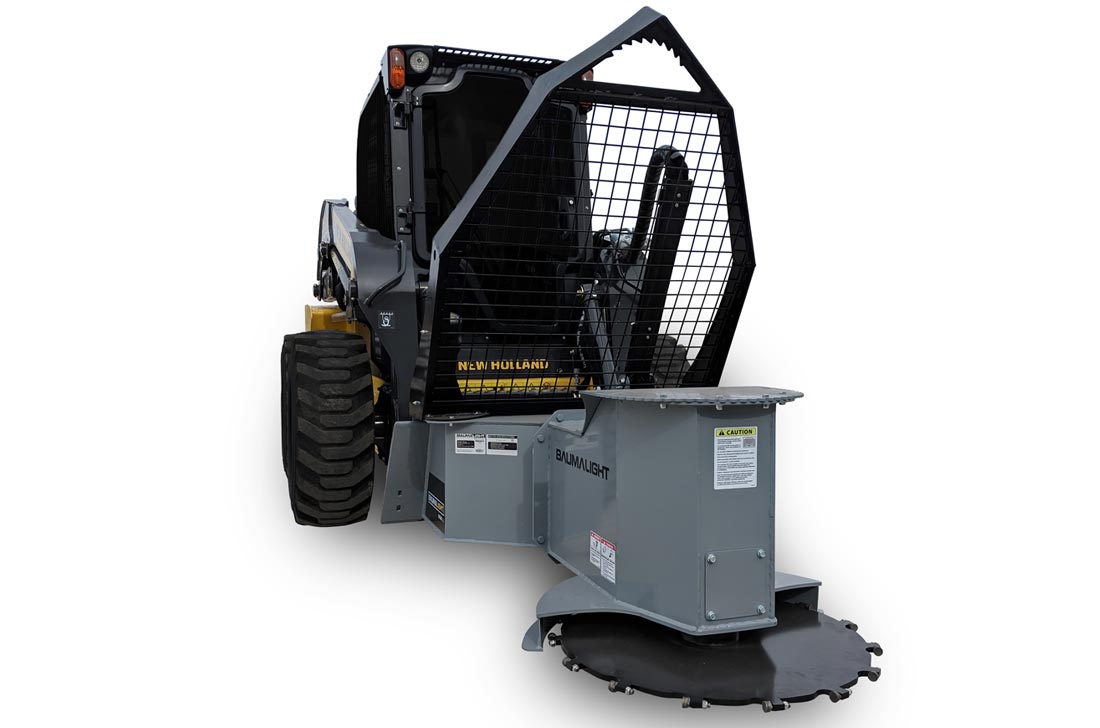

BAUMALIGHT DSA530 ROTATING TREE SAW  FOR SKID STEER  The Baumalight DSA530 Rotating Tree Saw is a versatile attachment designed for skid steer loaders. It features a powerful, rotating saw blade that can efficiently cut through trees and large branches. The saw is mounted on a sturdy, rotating arm, allowing for 360-degree cutting capability without the need to reposition the skid steer. This makes it ideal for clearing land, trimming trees, and performing forestry tasks. The Baumalight DSA530/T530 is known for its durability and ease of use, making it a valuable tool for contractors and landowners alike. DSA530 Rotating Tree Saw for Skid Steer DSA530...
Vendor: Baumalight
SKU: DSA530-T530
Availability: Many In Stock
Product type: Tree Saw
$11,997.00
$11,997.00
Model: DSA530 Rotating Tree Saw for Skid Steer
Subtotal: $11,997.00
Baumalight DSA530 Rotating Tree Saw For Skid Steer

Baumalight | DSA530 Rotating Tree Saw For Skid Steer

$11,997.00
Baumalight DSA530 Rotating Tree Saw For Skid Steer
Baumalight DSA530 Rotating Tree Saw For Skid Steer
Baumalight DSA530 Rotating Tree Saw For Skid Steer
Baumalight | DSA530 Rotating Tree Saw For Skid Steer
Baumalight DSA530 Rotating Tree Saw For Skid Steer
Baumalight | DSA530 Rotating Tree Saw For Skid Steer
Baumalight | DSA530 Rotating Tree Saw For Skid Steer

Baumalight | DSA530 Rotating Tree Saw For Skid Steer

$11,997.00
Model: DSA530 Rotating Tree Saw for Skid Steer
Description
Description
x

BAUMALIGHT DSA530 ROTATING TREE SAW  FOR SKID STEER

 The Baumalight DSA530 Rotating Tree Saw is a versatile attachment designed for skid steer loaders. It features a powerful, rotating saw blade that can efficiently cut through trees and large branches. The saw is mounted on a sturdy, rotating arm, allowing for 360-degree cutting capability without the need to reposition the skid steer. This makes it ideal for clearing land, trimming trees, and performing forestry tasks. The Baumalight DSA530/T530 is known for its durability and ease of use, making it a valuable tool for contractors and landowners alike.

DSA530 Rotating Tree Saw for Skid Steer

DSA530 Rotating Tree Saw for Skid Steer Overcome the challenge of dense brush and take down small trees efficiently with a skidsteer mounted hydraulically-driven tree saw. The DSA530 model, a multi angle tree saw for skidsteers is power angled by a helical actuator, rotating the cutting head 180 degrees for quick and precise cutting, trimming and limbing. Featuring a high-speed circular blade with replaceable carbide teeth for improved durability, and advanced hydraulics for longer motor life, this tree saw attachment is an ideal tool for your rural property. For simple in cab control, the DSA530 is available with Baumalight's Auxiliary Electrical Connection. This connection gives you simple quick connections and access to all the attachments functions using your machine's own controls.

Key Features

  • 360Degree Rotation: Allows for complete maneuverability and precision cutting.

  • High Cutting Capacity: Can handle trees up to 12" in diameter.

  • Durable Construction: Made from high-strength steel for longevity and reliability.

  • Safety Features: Includes guarding around the blade and an emergency shut-off switch.

  • Quick Attach Mount: Universal skid steer mount for easy and fast attachment.

  • Adjustable Cutting Depth: Customize the cutting depth to meet your specific needs.

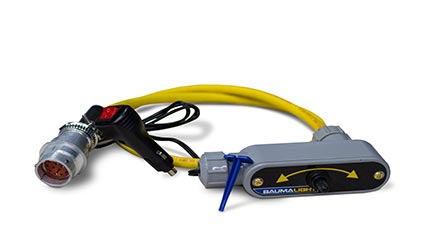

  • D005812 OPTIONAL HAND CONTROL FOR SKIDSTEER

    Is one of your skidsteers older, without an auxiliary electrical connection? We also have an in-cab adapter to plug into your Aux Electrical Connected attachments that will allow you to run them. Plug the adapter into the attachment, connect it to 12V and now you can run your new attachment on an older skidsteer.


    Optional Hand Control

    HEAVY DUTY BUILD

    The tree saw’s durable design and quality materials combine to create a saw that is able to stand up to the demanding work of cutting limbs and trees.

    Baumalight mini skid steer tree saw

    ROTATING HEAD WITH HELICAL ACTUATOR

    Available with 180º rotating cutting the head, powered by a rotating helical actuator offers precise control for quick, clean trimming and limbing.

    ROTATING HEAD WITH HELICAL ACTUATOR

    NO GREASE ROTATION

    Thanks to the DSA530's rotating heliacal actuator, the head doesn’t rotate on a pin and doesn’t need greasing.

    No Grease Rotation

    CLEAN CUTS

    The tree saw makes clean work of limbing and trimming trees safely and quickly, leaving pruned trees with a clean cut.

    Vertica tree saw for skidsteer

    MOUNT ANGLE

    DropSaw's skidsteer plate is on a roll back angle. This gives you even more flexibility to successfully trim areas that are difficult to reach.

    DropSaw Mount Angle

    SAW BLADE SHIELDING

    The durable shield encloses the blade for protection, directing the chips as it easily cuts through limbs and trees.

    Baumalight tree saw for skid steer

    BLADE MOUNTED ON HEAVY DUTY BEARING SUPPORT

    The tree saw's blade is mounted on an overhung load adapter, which is designed with tapered roller bearings and built to stand up to the rigors of sawing limbs and trees. The overhung load adapter keeps the blade spinning in the toughest trimming conditions.

    Blade mounted on heavy duty bearing support

    CASE DRAIN – VENT TO ATMOSPHERE

    To prevent pressure relief activation on the motor seal, the DXA530 comes with a case drain line and a vent to atmosphere relief valve. In the event there is a spike in pressure in your hydraulic lines, the case drain will relieve the pressure and drain it back into the return line and back to the tank. If the connection of the case drain (third line) is missed or if the line is blocked, then the case drain will vent to notify you. A properly installed case drain protected by a vent to atmosphere relief valve will save the work of replacing your shaft seal and save you from down time of unexpected maintenance. To learn more CLICK HERE about the case drain line.

    Case drain vent to atmosphere

    FRONT PUSH BAR

    A solid serrated steel plate up front helps guide limbs, branches and small trees safely away from the operator.

    FRONT PUSH BAR

    ANGLED PUSH BAR WITH PROTECTIVE MESH

    The large push bar with integrated safety mesh is angled to help guide any falling debris away from the operator.

    ANGLED PUSH BAR WITH PROTECTIVE MESH

    AR400 STEEL BLADE

    The tree saw’s heavy duty circular blade is designed and shaped from AR-400 steel. This abrasion resistant steel is rugged and ready for the abuse of a long service life.

    AR400 STEEL BLADE

    HIGH SPEED TEETH

    The concave shaped carbide tip of our High Speed Teeth provide aggressive cutting action by chipping the brush bit by bit. This round tooth is 3 teeth in 1. Simply loosen the lock nut and rotate the tooth to a fresh, sharp cutting edge. This can be done three times, extending the life of each tooth.

    High speed teeth

    EASY TEETH CHANGING

    The high speed teeth design allows for easy rotation and changing of the teeth as needed.

    EASY TEETH CHANGING

    6 FREE TEETH

    All DSA530 Tree Saw come with a free set of 6 replacement teeth. These replacement teeth are conveniently shipped in a robust enclosed compartment on top of the frame.

    6 free teeth

    AUX ELECTRICAL CONNECTION FOR IN CAB CONTROL

    For simple in cab control, the DSA530 is available with Baumalight's Auxiliary Electrical Connection. This connection gives you simple quick connections and access to all the attachments functions using your machine's own controls.

    Aux Electrical Connection For In Cab Control

    DESIGNED FOR MAXIMUM VISIBILITY

    Making sure you have the best seat in the house, the tree saw was designed with maximum visibility in mind, allowing you to make cleaner and better cuts.

    DropSaw maximum visibility In cab View

    PROTECTIVE POWDER COAT FINISH

    Heavy duty construction and a durable powder coated finish.

    DropSaw DSV530 PROTECTIVE POWDER COAT

    EASY ACCESS PANELS FOR SERVICE

    Built for the long haul, the tree saw has multiple removable panels for easier access and servicing.

    DropSaw Access Panels

    ANTI-SLIP MAT FOR EASY ACCESS TO CAB

    For ease of entry and exit from the cab an anti-slip strip gives sure footing.

    ANTI SLIP MAT FOR EASY ACCESS TO CAB

    INTERNAL HOSE ROUTING

    All of the hydraulic hoses on the DropSaw are sleeved for operator and hose protection while the connecting hoses are sleeved and wrapped in hose armour for double protection. The hoses are then routed internally, keeping them out of harm’s way. The DropSaw also features a pivoting arm with a greaseable pin keeping the slack out of the way which protects the hoses from dangerous pinching and strain.

    INTERNAL HOSE ROUTING

    HOSES SUPPLIED

    Skidsteer tree saw models ship with the necessary hydraulic hoses, so you can connect and go to work.

    DropSaw DSV530 models hydraulic hoses

    HOSES DOUBLE SHIELDED

    All of the hydraulic hoses are routed internally where possible and sleeved for operator and hose protection, while the connecting hoses are sleeved and wrapped in hose armor for double protection.

    Hoses With double shielded

    HOSE SUPPORT

    Skidsteer Dropsaws feature travelling hose supports that relieves pressure and strain on hoses. A greaseable pin on the hose support ensures longer life and better performance.

    Hose support

Detailed Specifications

Baumalight DSA530/T530 Rotating Tree Saw for Skid Steer

Specification Details
Model DSA530/T530
Type Rotating Tree Saw
Compatibility Skid Steer

Cutting Capacity

 Up to 12" diameter trees
Rotation 360-degree rotation

Power

 Requirement

 Hydraulic power (standard skid steer flow and pressure)
Weight Approximately 500 lbs
Mounting Universal skid steer mount
Material High-strength steel construction

Safety

 Features

 Guarding around the blade, emergency shut-off switch

Additional

Features

Adjustable cutting depth, quick attach mount,

easy installation

DSA530 Rotating Tree Saw for Skid Steer

Part #: DSA530/T530
Mfg: BAUMALIGHT
Category: SKID STEER ATTACHMENTS
SubCategory: TREE SAW SKID STEER
Industry: CONSTRUCTION

DSM530 Manual Rotation Tree Saw for Skidsteers

Part #: DSM530/T530
Mfg: BAUMALIGHT
Category: SKID STEER ATTACHMENTS
SubCategory: TREE SAW SKID STEER
Industry: CONSTRUCTION


General Warranty Info:

  • Skid Steer Store works closely with our manufacturers to supply and support your products warranty needs as best as possible!
  • The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
  • Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
  • Please reach out to us for any specific warranty information needed about products and parts you can’t find!

Videos

What Can Cause Excessive Case Drain Back-Pressure on Skidsteers?

Testing Case Drain Back-Pressure Using Open Case Drain Coupler

Testing Skidsteer Case Drain Back-Pressure Using Pressure Gauge

Why Breaking in a Replacement Hydraulic Motor is Important

How to Remove Seal on Hydraulic Motor or Load Adapter

Demonstrating and Troubleshooting Zero-Leak Relief Valve
