7' shoulder-to-shoulder helical lead section, 2-7/8" OD × 0.217" wall tubular steel shaft with a self-starting 45°...
Vendor: Helical Anchors Inc.
SKU: TL278217843810
Availability: Many In Stock
Product type: Helical Lead Sections
$154.00
$154.00
Helix Configuration: Single — 10" Helix
Subtotal: $154.00
2-7/8" SS Helical Lead Section — 7'

2-7/8" SS Helical Lead Section — 7'

$154.00
2-7/8" SS Helical Lead Section — 7'
2-7/8" SS Helical Lead Section — 7'
2-7/8" SS Helical Lead Section — 7'
2-7/8" SS Helical Lead Section — 7'
2-7/8" SS Helical Lead Section — 7'
2-7/8" SS Helical Lead Section — 7'

2-7/8" SS Helical Lead Section — 7'

$154.00
Helix Configuration: Single — 10" Helix
Description
Description
x

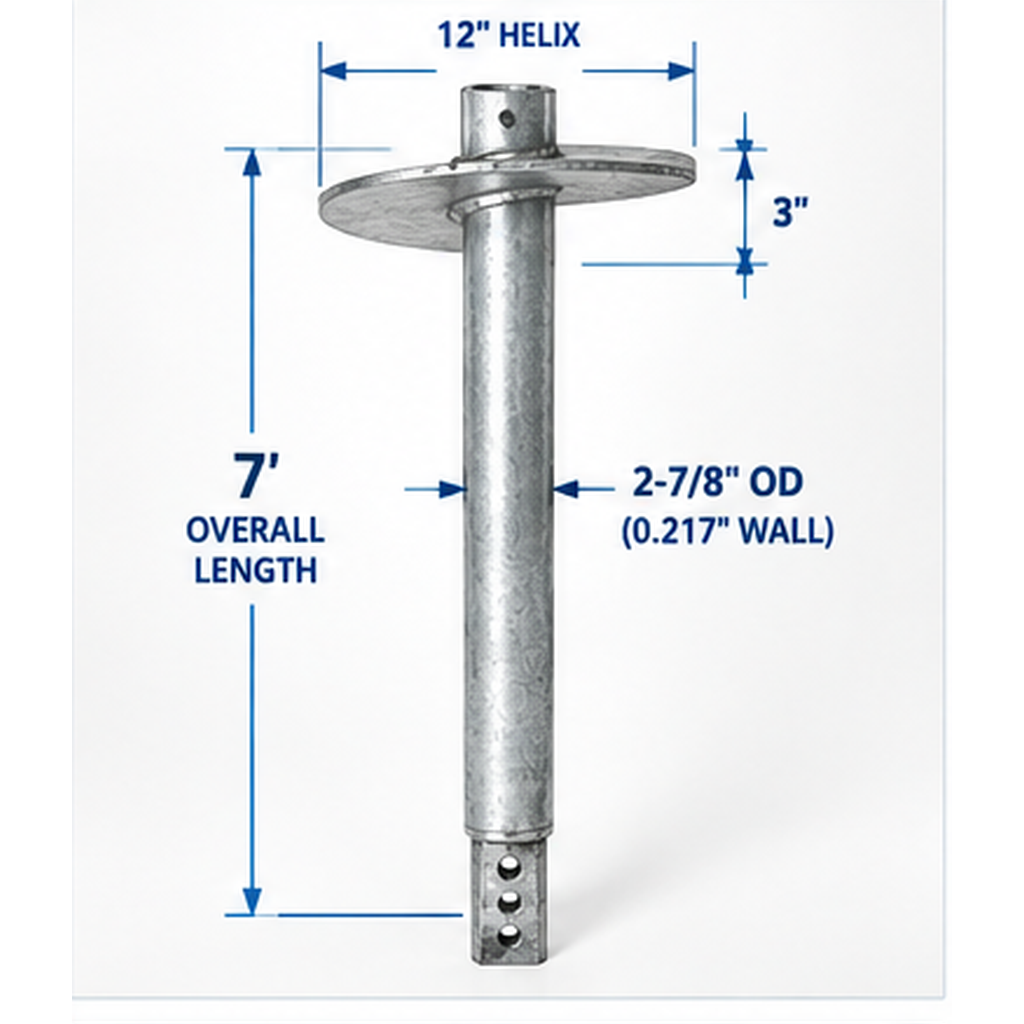

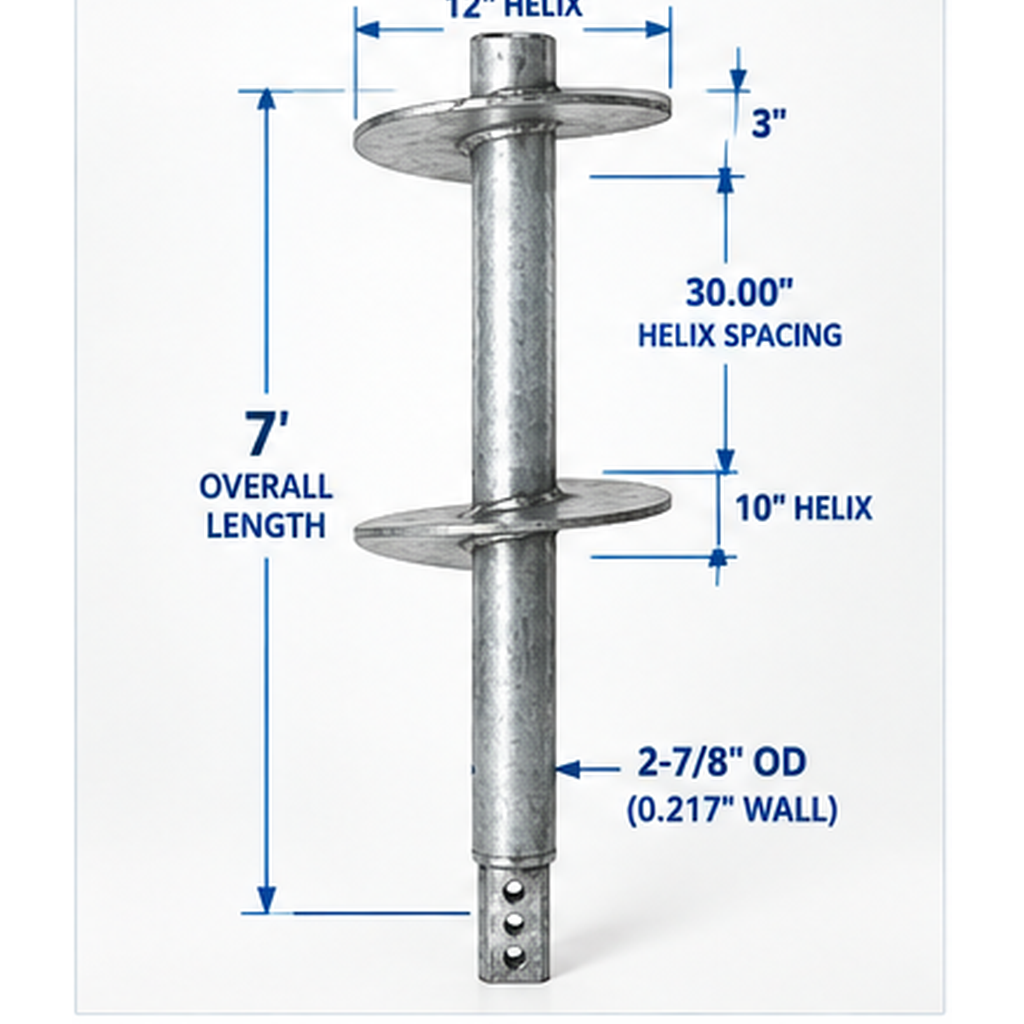

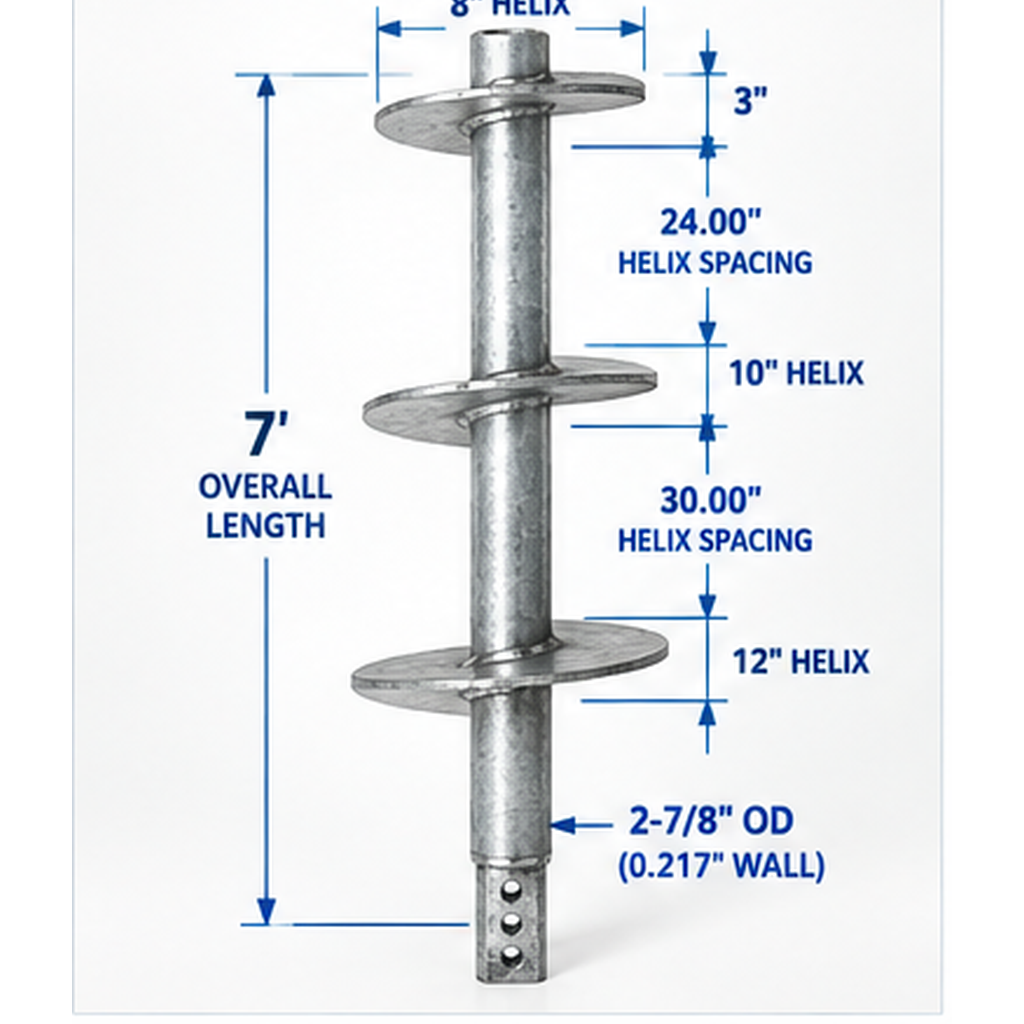

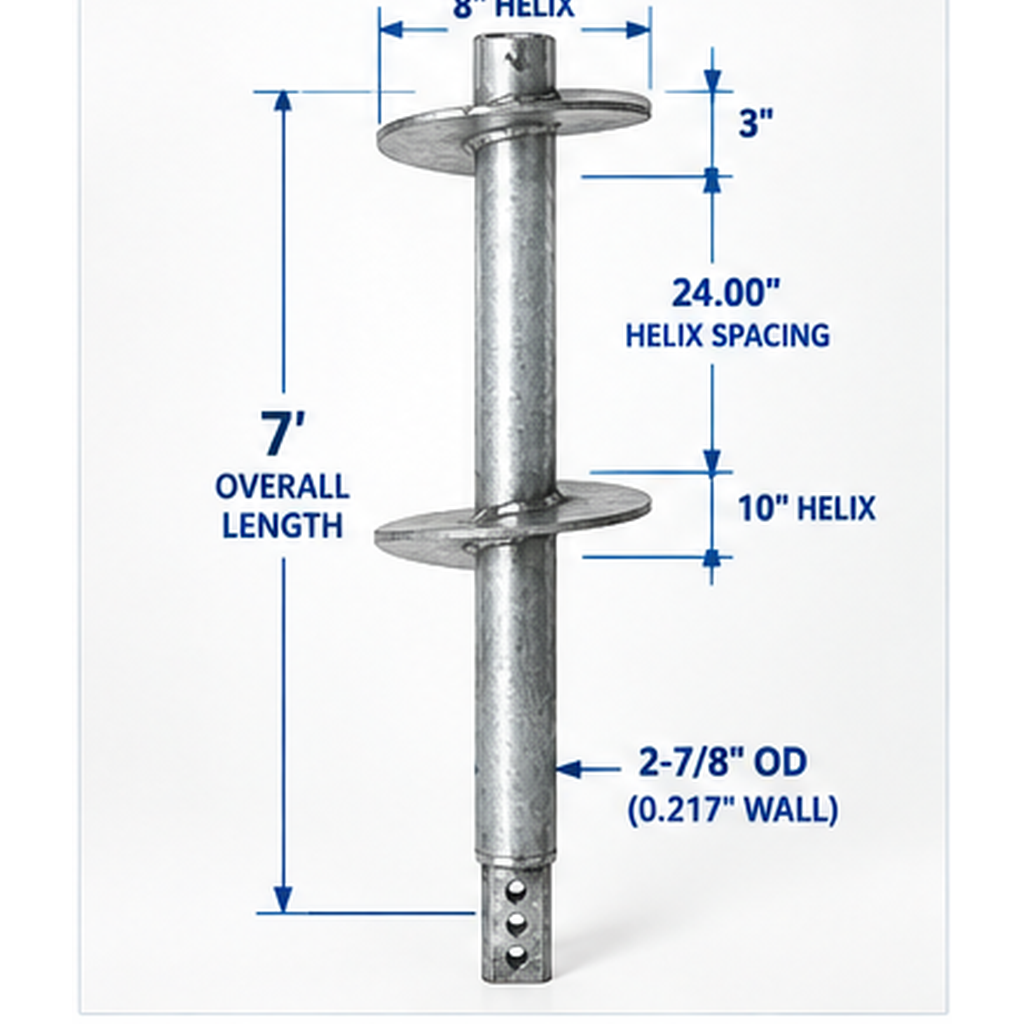

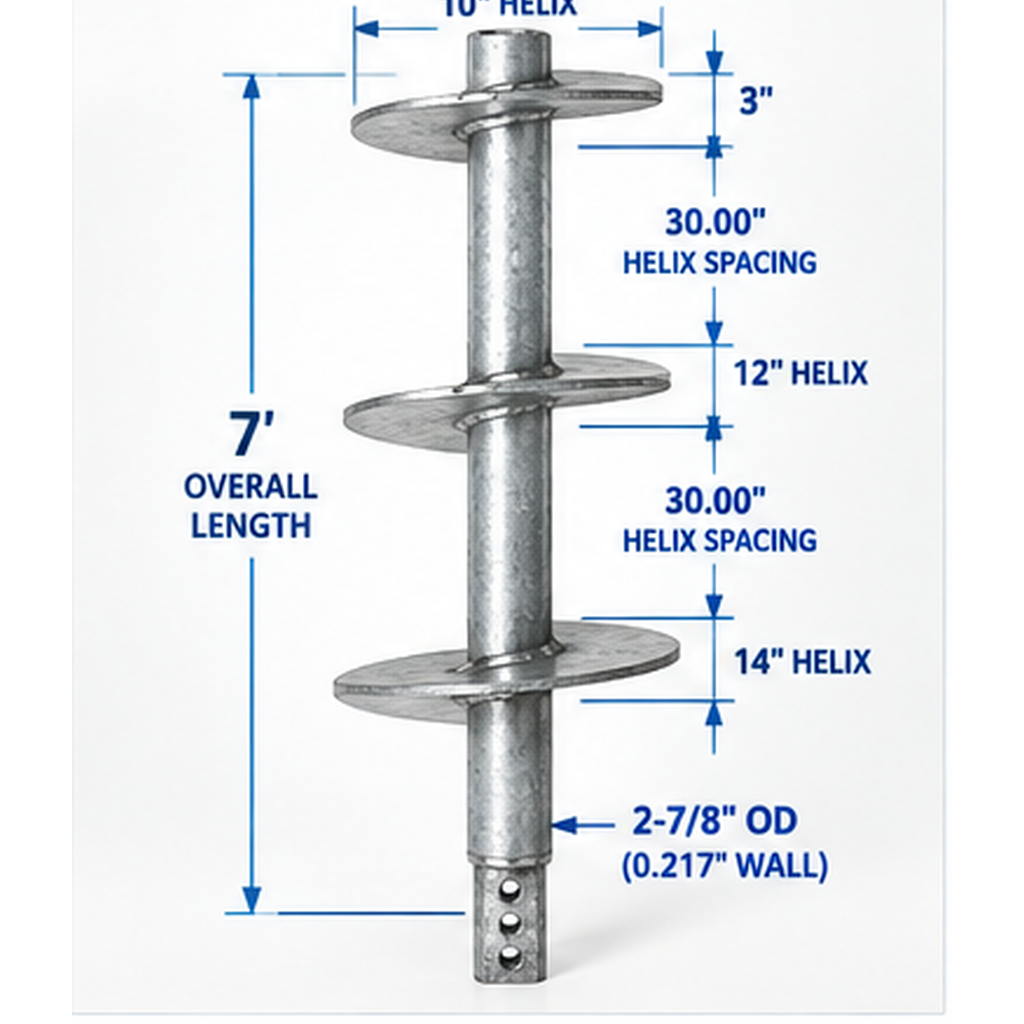

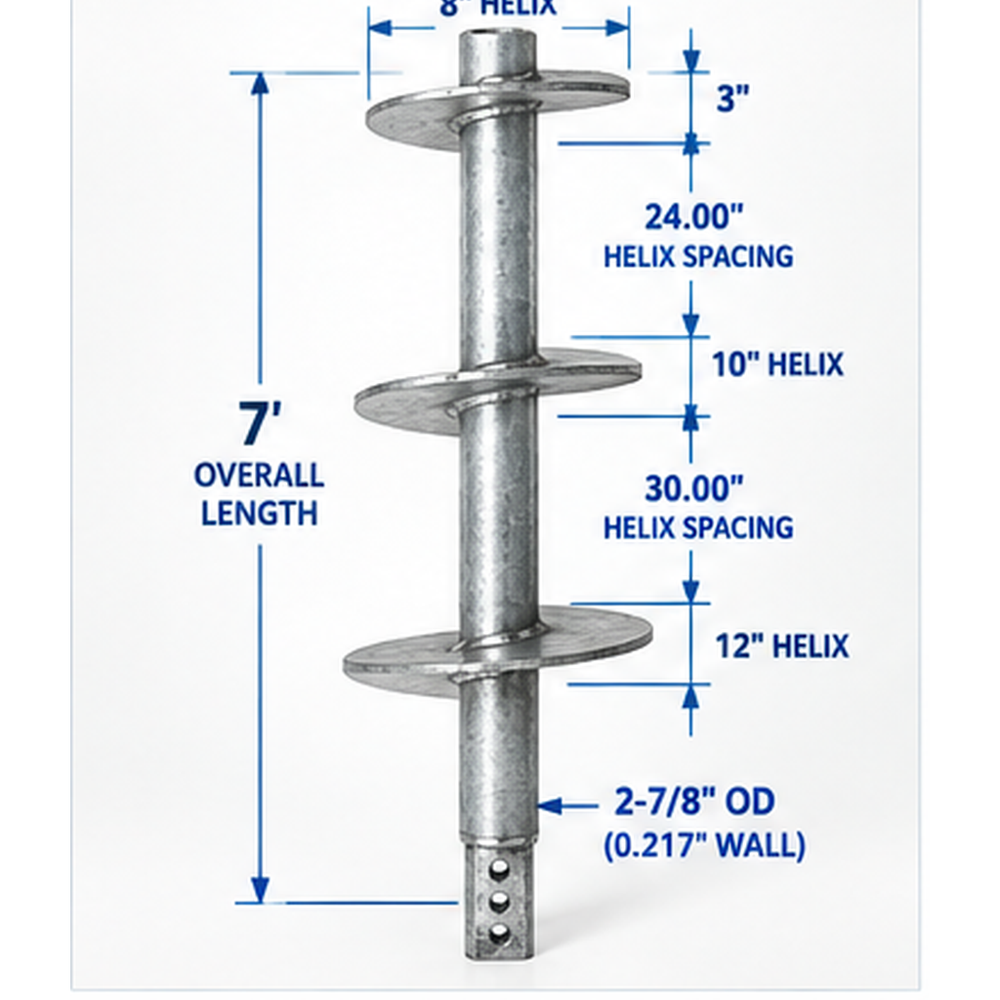

7' shoulder-to-shoulder helical lead section, 2-7/8" OD × 0.217" wall tubular steel shaft with a self-starting 45° cut point. Available in single, double, or triple helix configurations to match load and soil conditions.

  • Material: tube 80 ksi min. yield; pin/box 107 ksi min. yield; helix plate 50 ksi min. yield
  • Finish: hot-dip galvanized per ASTM A123
  • Torque rating: 13,000 ft-lb
  • Coupling: 3/4" hex bolts, ASTM A325
  • Compatible with 2-7/8" extensions and new-construction brackets in this catalog

Component only. Suitability of pier depth, spacing, and helix configuration for a specific site remains the responsibility of the buyer's registered design professional.
