Helical Anchor Extension

2-7/8"

5 and 7 Foot Shoulder to Shoulder Length

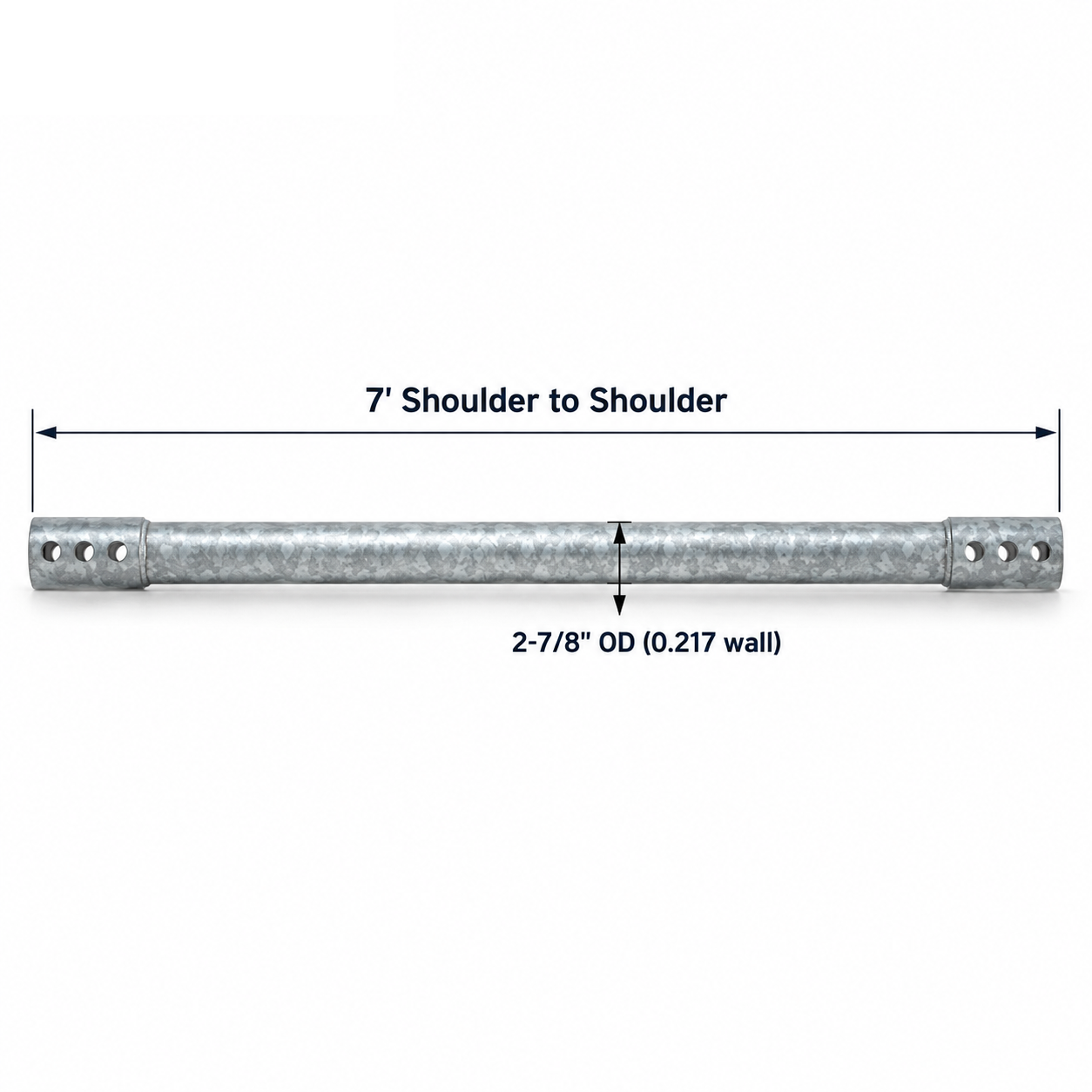

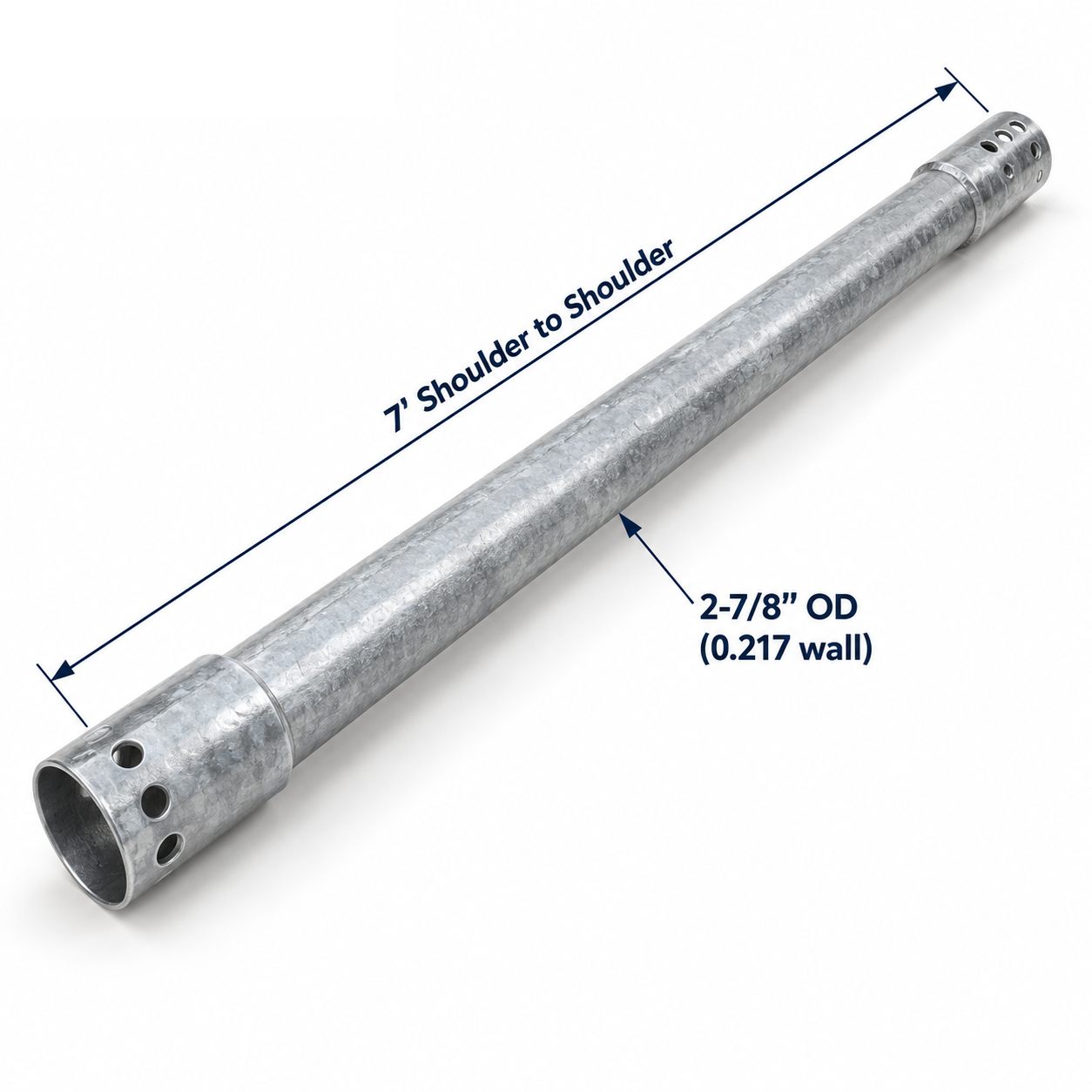

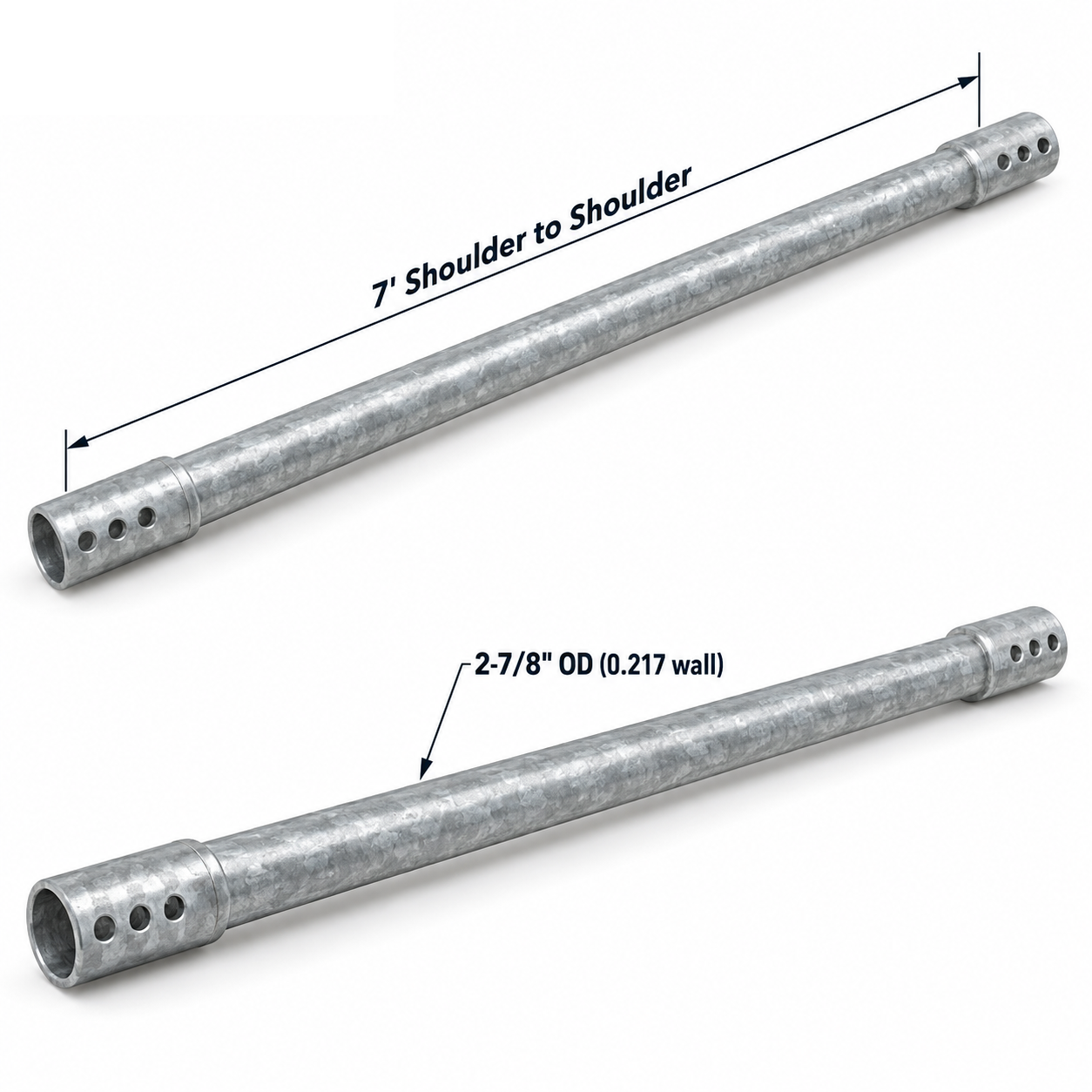

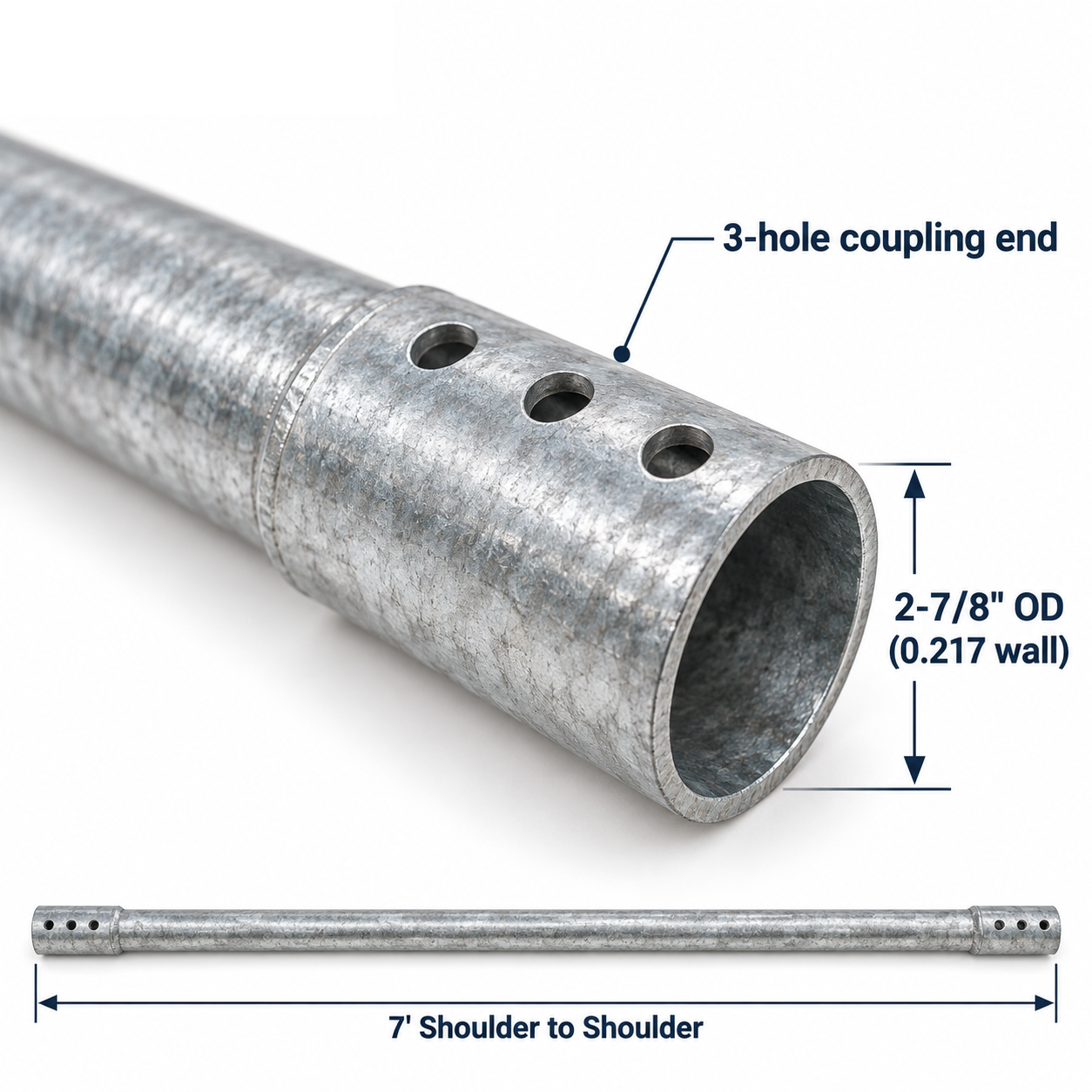

Plain helical extension used to reach competent bearing soil beyond a lead section's depth. 2-7/8" OD × 0.217" wall tubular steel shaft with matching pin-and-box coupling ends.

  • Material: tube 80 ksi min. yield; pin/box 107 ksi min. yield
  • Finish: hot-dip galvanized per ASTM A123
  • Torque rating: 13,000 ft-lb
  • Coupling: 3/4" hex bolts, ASTM A325
  • Stack multiple extensions per pile as site conditions require

Component only. Depth-to-refusal and extension count for a specific site remain the responsibility of the buyer's registered design professional.
